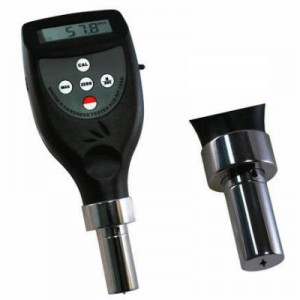

PCE 150 D đo độ cứng của nhựa, Phoocmica, Epoxies và thủy tinh Plexi.

Khoảng đo:  0 ~ 90

Độ phân giải:  0.1 (đơn vị độ cứng).

Độ chính xác:  ±1 đơn vị

Cổng kết nối:  RS-232

 Đo độ cứng tối đa: 90

Tính năng tự động tắt ( để tiết kiệm pin).

Hiển thị: màn hình LCD (128 x 64).

Nguồn: pin  4 x 1,5 V.

Nhiệt độ hoạt động:  0 ~  +50 ºC.

Kích thước máy: 162 x 65 x 28 mm

 Khối lượng:  170 g.

Cung cấp bao gồm:
Máy HT 150 , 4 pin, khối kiểm tra, hộp đựng và hướng dẫn sử dụng.

Máy  PCE-HT 150 là dụng cụ đo độ cứng cầm tay hiện đại, máy dùng để đo độ cứng của các loại vật liệu khác nhau. Thiết bị được sử dụng rộng rãi trong công nghiệp, xưởng sản xuất, trung tâm kiểm định, phòng thí nghiệm. Máy có chức năng lưu trữ số liệu đo vào bộ nhớ trong, từ đó chúng ta có thể xử lý chúng một cách chi tiết trên phần mềm chuyên dụng

- Dễ sử dụng.
- Đáp ứng đầy đủ các tiêu chuẩn về độ cứng.
- Thực hiện phép đo nhanh và chính xác.
- Tự động tắt sau 2 phút.
- Vỏ nhựa ABS.

- Có phần mềm xử lý chuyên dụng ( tùy chọn).

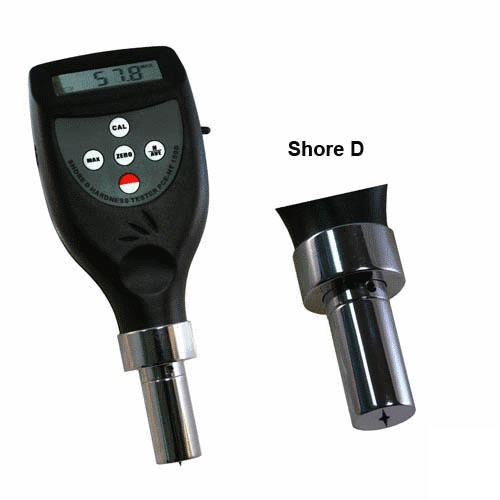

PCE-HT 150 (Shore D) Hardness Tester
Digital (Shore) Hardness Tester to measure hardness of different material types (Shore D) with RS-232 port and optional software.

The PCE-HT 150 Hardness Tester allows the measurement of hardness of different material types (Shore D). It is used as a handheld device in the workplace, or to test materials in the laboratory. The PCE-HAT 150 Hardness Tester comes with a measurement component and a digital display with a resolution of only 0.1 hardness units. The PCE-HT 150 Hardness Tester can be used as a handheld device in production or quality control. The hardness tester can be calibrated at any time according to the ISO standard and it includes an ISO calibrating certificate (additional cost). The PCE-HT 150 Hardness Tester has an RS-232 interface for data to be transferred to a PC or a portable computer. The software (optional) when it is connected to a data cable RS-232 measurement values series can be documented and evaluated.

PCE-HT 150 (Shore D) Hardness tester: to measure hardness of different material types.

- Pocket sized
- Portable use
- Meets all the current hardness standards
- Fast and accurate results
- Auto shut-off after 2 minutes of inactivity
  (battery protection)
- ABS plastic housing
- It includes a carrying case and a testing block.

- Optional software
- Easy reading digital display
- Easy to use
- Optional ISO calibration certificate

View / print user’s manual of the
PCE-HT 150 Hardness Tester
View / print user’s manual of the PCE-HT 150 (Shore A, C o D) Hardness tester:

Technical Specifications

Measurement ranges

0 ... 90

Resolution

0.1 of a hardness unit

Accuracy

±1 hardness unit

Measurement values shown

actual hardness, maximum value, average value
(retains the maximum value)

Interface

RS-232

Maximum hardness

Optional accesories

Data cable

auto shut-off

Other functions

4 x 1,5 V batteries

Power

0 ... +50 ºC

Operating temperatura range

162 x 65 x 28 mm

Dimensions

128 x 64 LCD

Weight

170 g

Delivery contents

1 x PCE-HT 150 Hardness Tester (Shore D), 4 x batteries, 1 x testing block, 1 x carrying case and user’s manual
