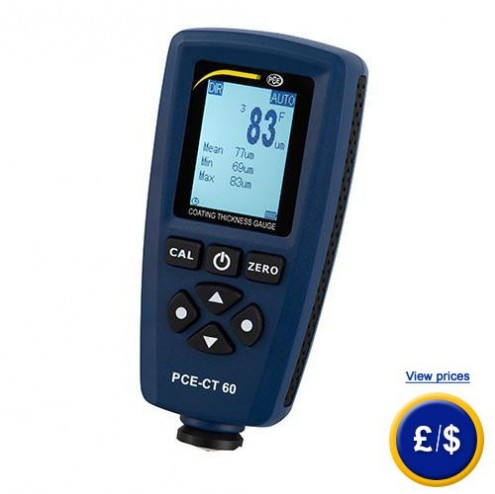

Thông số kỹ thuật Máy đo độ dày lớp phủ PCE-CT 60

  • Khoảng đo(Cả từ tính và không từ tính): 0- 1250 µm
  • Bề mặt đo nhỏ nhất
    • Từ tính:Ø 7 mm
    • Không từ tính: Ø 5 mm
  • Bán kính cong nhỏ nhất
    • Từ tính: 1.5 mm
    • Không từ tính: 3 mm
  • Giao diện kết nối USB
  • Nguồn: Pin AAA
  • Nhiệt độ hoạt động: 0° C ... + 40° C
  • Kích thước: 110 x 50 x 23x mm
  • Trọng lượng: 100 g

Chức năng PCE-CT 60

  • Đo được nhiều loại vật liệu khác nhau
  • Cho kết quả đo nhanh, ngay lập tức
  • Phạm vi đo lớn
  • Đầu đo chịu mài mòn
  • Có thể hiệu chuẩn và thử với các tấm chuẩn đi kèm
  • Dễ dàng sử dụng
  • Tự động tắt khi không sử dụng
  • Màn hình LCD có đèn nền
  • Chức năng nhớ giá trị nhỏ nhất, lớn nhất
  • Chức năng giá trị trung bình

Cung cấp bao gồm:

  • 1 x PCE-CT 60 Máy đo độ dày lớp phủ
  • 2 x pin AAA 1.5V
  • 1 x đầu đo Fe và FN
  • 1 x hộp đựng
  • 1 x tấm chuẩn
  • 1 x Hướng dẫn sử dụng

Coating Thickness Tester PCE-CT 60 (F/NF)
Hãng sản xuất: PCE- Anh
Bảo hành: 12 Tháng

Combined Coating thickness tester for capture of the thickness of coating, plastic…/ measuring of steal/iron (F) and non-ferrous objects (NF) / single or permanent measurement

Our coating thickness tester is an instrument manufactured for nondestructive measurements of coating thickness (coating, colors, plastic… on steel/iron and non-ferrous materials). In this aspect, the coating thickness tester stands out with its wide measuring range, two measuring modes and its memory. They are indispensable for control measurement concerning production, car workshops and quality assurance in general. A coating thickness tester is essential for engineers in the coating and paint sector. The coating thickness tester is ideal to detect accidental damages or to avoid damages in advance. That is why coating thickness testers are made for automotive experts. But it is furthermore important for the industrial sector concerning input and output controls as well as material inspections. Our coating thickness tester is ergonomically designed, has an integrated measuring sensor and is very easy to handle. The coating thickness tester makes it possible to determine measurements instantly and with high accuracy. It is also developed for measurements of non-ferrous layers as coatings, plastic, chrome, copper, tin, enamel etc., on steel and iron as well as on all insulating layers as coating, plastic, enamel, paper, glass, rubber etc., on copper, aluminum, brass, and stainless steel as well as on anodized aluminum layer. Because of its high measuring range, a coating thickness tester is also appropriate for the inspection of paint coatings in the sector of railings and shipbuilding. If there are any questions about this Coating Thickness Tester PCE-CT 60

Technical specifications of the coating thickness tester

Material

Steel / iron

Non-ferrous material

Functional principle

Magnetic induction

Eddy current

Measuring range

0 ... 1300 µm

0 ... 1250 µm

Accurancy

0 ... 999 µm
± 3 % 2 µm
1000 ... 1300 µm
± 5 %

0 ... 999 µm
± 3 % 2 µm
1000 ... 1300 µm
± 5 %

Smallest measured surfaces

Ø 6 mm

Ø 6 mm

Smallest curvature radius

1.5 mm

3 mm

Basic film thickness

0.5 mm

0.3 mm

Measuring modes

- Single or permanent measurement

Units

µm, mm, mils

Functions

- Alarm
- Backlight
- Automatic shutdown
- Min. / max. - function
- Mean value
- Calibration

Interface

USB

Operating conditions

0° C ... + 40° C / 20 ... 90% r.H.

Power

2 x 1.5 V AAA battery

Dimensions

110 x 53 x 24 mm

Weight

100 g (with battery)

Delivery Content of the Coating Thickness Tester PCE-CT60

- 1 x PCE-CT 60 Coating thickness tester with integrated F-/NF probe, 1 x carrying case, 2 x 1.5 V AAA batteries, 1 x set of calibration standards, 1 x User's manual
