Máy PCE-TG 250 là máy đo độ dày vật liệu rất dễ sử dụng cho phép đo độ dầy vật liệu dưới lớp bề mặt tráng, phủ.

Thông số kỹ thuật

-Khoảng đo độ dầy:
+Thép: 1.00 ~ 250.00 mm.
+Vật liệu dưới lớp phủ bề mặt: 2.50  ~ 20.00 mm.
-Độ phân giải:
+ 0.01 mm (< 100 mm)
+0.1 mm (>100 mm)
-Độ chính xác: ±0.01 mm.
-Tần số đầu dò: 5 MHz
-Nhiệt độ bề mặt vật cần đo: -20 ~  +60 °C.
-Tính năng hiệu chỉnh của phép đo với tấm thép.
-Đơn vị đo: mm/ inch
-Tốc độ truyền âm thanh: 1000 ~ 9999 m/s
-Độ phân giải: 1 m/s
-Màn hình LCD: 128 x 64.
-Bộ nhớ 500 số đo.
-Nguồn: 2 pin AA
-Kích thước máy: 149 x 73 x 32 mm
-Khối lượng: 350g (gồm pin).
Hãng sản xuất : PCE - ER

Bảo hành: 12 tháng

Cung cấp bao gồm: Máy đo độ dày PCE-TG 250, sensor và cáp, gel nối, 4 block kiểm tra, vali đựng máy và hướng dẫn sử dụng.

Material Thickness Meter
for measuring covered surfaces, such as colours

The PCE-TG 250 Material Thickness Meter is an ultrasound device which is easy to use and allows for accurate measurement of material thickness. Sound velocity can be adjusted for this device, making it ideal for measuring different materials like steel, aluminium, glass and standard plastic. This Material Thickness Meter can take measurements of tanks, tubes and other materials that are covered. It is a very versatile device thanks to its small sensor head which allows it to take measurements in places that are enclosed or that are difficult to access. This device, without a doubt, surpasses other conventional Material Thickness Meters. t is ideal for use in quality control and for taking measurements without causing damage to the surface layer of the object being measured. It can quickly be set to measure material thickness and that of coating thickness. If you have any questions regarding this device, contact one of our technicians.

  • Memory for up to 500 readings segmented into groups of five.

  • Measures surfaces which have been recovered.

  • Auto shut-off after approx. 3 minutes of inactivity to save battery power.

  • Adjustable sound velocity for measuring different materials.

  • Individual alarm limits.

  • Measures thickness from 1 up to 250.00mm.

  • Calibrates to either one or two points.

  • Integrated steel calibration block.

  • Backlit display.

View or print the user's manual
PCE-TG 250 material thickness meter: the user's manual

the PCE-TG 250 material thickness meter: for measuring covered surfaces, such as colours.

PCE-TG 250 Material Thickness Meter

Technical Specifications

Measurement ranges 1.00 to 250.00mm (steel) 2.50 to 20.00mm (recovered surfaces)
Accuracy ±0.01mm (steel)
Sensor head (included) Frequency of 5 MHz
Resolution 0.01mm (up to 100mm)
0.1mm (> 100mm)
Display 128 x 64 LCD (backlit)
Operating temperature 0 to 50ºC
Units of measurement mm / inch (selectable)
Sound velocity 1000 to 9999 m/s
Memory for up to 500 readings
Power 2 AAA batteries
Battery level indicator indicates when battery is low
Dimensions 149 x 73 x 32mm
Weight 350gr

Images of use

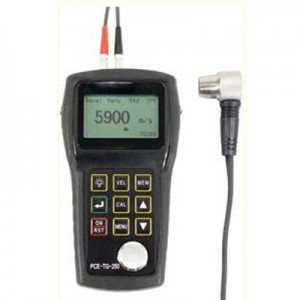

the PCE-TG 250 material thickness meter in its case Here is the PCE-TG 250 Material Thickness Meter in its case.

Here is the PCE-TG 250 material thickness meter being used.
Here is the PCE-TG 250 Material Thickness Meter being used.

Delivery Contents

PCE-TG 250 Material Thickness Meter, sensor head with cable, coupling gel, 4 level test block, carrying case and user's manual.
