Dải đo

0 to 100kg / 0 to 981N

Độ phân dải

0.05kg / 0.2N

Cấp chính xác

±0.5% +2 digits/ ±5N

Đơn vị đo

Grams / Newton

Khả năng chịu quá tải

50% (lên đến 150kg)

Cổng kết nối

RS-232

Phần mềm và cáp RS232

lựa chọn thêm

Dữ liệu truyền

Dữ liệu được truyền vào máy tính tốc độ lấy mẫu 2s một lần

Màn hình hiển thị

 LCD 5 số; 10mm

Chức năng đo

Đo lực kéo, lực nén, lực căng

Nguồn

6 pin  AA hoặc adapter

Kích thước

dynamometric cell: 130 x 51 x 19mm
               (from clasp to clasp)
                                 64 x 51 x 19mm
                       (without hook /clasp)
force gauge: 227 x 83 x 39mm

Trọng lượng

external dynamometric cell: 380g
force gauge: 450g

Hãng sản xuất: PCE Anh

Bảo hành: 12 tháng

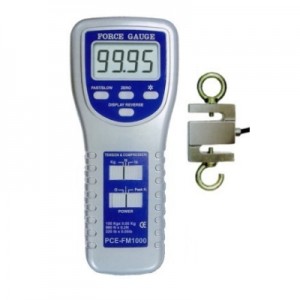

Force Gauge for measuring traction and compression up to 100kg / 981N,
 with dynamometric cell and RS-232 interface

The PCE-FM1000 Force Gauge is controlled by a microprocessor which can quickly and accurately read traction and compression. The display of the Force Gauge is easy to read thanks to its large clear digits, thus avoiding errors when taking traction or compression readings. The Force Gauge has a dynamometric casing with a 2m cable to connect the tester to the casing.
The dynamometric cell can be attached using clasps which come with the device. The clasps can be unscrewed and removed from both sides of the dynamometric cell in such as way that the cell can also be fastened to other elements such as a test position. The Force Gauge is powered by batteries or by a mains adaptor (300mA power source is available as an accessory).
The Force Gauge also has an RS-232 port allowing for it to be connected to a computer.  With optional software and RS-232 cable, data can be tranferred to a computer to permit data to be evaluated at a later point in time. The Force Gauge transfers data at a rate of 4 readings per second. If data is saved simultaneously to a computer, this should be done through the Windows hyperterminal as a data logger. The data transfer rate to the computer is the same.

  • Maximum traction and compression function (Peak Hold)

  • Data port

  • optional Software and data cable

  • Zero reset

  • Maximum value recovery

  • Auto shut-off

  • Holes on the back of the device

  • 6mm fixing positions on both sides for attaching the hooks and clasps and to attach the test position

  • Battery level indicator

  • Overload protection  = 150%

  • optional adaptor to attach the dynamometric cell to the LTS-20 test position

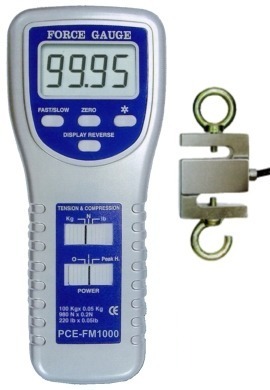

PCE-FM 1000 force gauge for measuring traction and compression up to 100kg.
PCE-FM1000 Force Gauge

 View or print the user's manual
PCE-FM1000 force gauge: the user's manual

Technical Specifications

Measurement ranges

0 to 100kg / 0 to 981N

Resolution

0.05kg / 0.2N

Accuracy

±0.5% +2 digits/ ±5N

Units of measurement

Grams / Newton

Maximum overlaod

50% (up to 150kg)

Connection port

RS-232

Software and RS-232 cable

optional

Data transmission rate of software

Data transfers to a computer, using the software, at a rate of one reading every 2 seconds.
The Force Gauge can trasfer data at a quicker rate when transferring from memory to a computer, one reading every 0.25 seconds using Windows hyper terminal.

Display

5 digit LCD; 10mm

Measurement functions

 measures traction and compression with Peak Hold function

Power

6  AA batteries or mains adaptor

Dimensions

dynamometric cell: 130 x 51 x 19mm
                                  (from clasp to clasp)
                                  64 x 51 x 19mm
                                    (without hook /clasp)
force gauge: 227 x 83 x 39mm

Weight

external dynamometric cell: 380g
force gauge: 450g

Delivery contents

PCE-FM1000 Force Gauge with external cell, 2m cable, carrying case and user's manual
