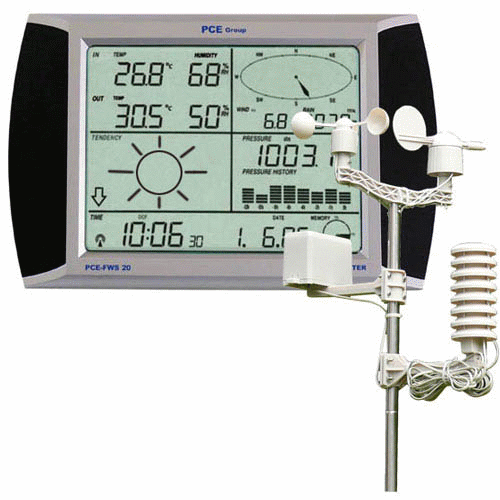

Wireless Weather Station PCE-FWS 20

Weather Station with five sensors and vertical mast (for wind direction, wind speed, temperature, relative humidity, rainfall) / Alarm function/ USB port / Analysis software

The PCE-FWS 20 Wireless Weather Station is a multifunction device which will cover all your needs both in the private and in the professional sector. The PCE-FWS 20 Wireless Weather Station allows you to detect with a high accuracy wind direction, wind speed, temperature, relative humidity and rainfall. Apart from these performances, you will be able to activate different alarm functions (air speed, atmospheric pressure, etc...). You will be fascinated by this weather station. With the help of PCE-FWS 20 Wireless Weather Station you will be able to choose suitable clothes and the watering of the garden among other functions. Meteorological data is sent by means of a radio to the main unit when the distance does not exceed 100 meters. This Wireless Weather Station is equipped with the latest technology for the meteorological analysis. Meteorological values can be easily recovered by means of the touch screen. With the USB port and the USB cable included in the delivery, data can be transferred from the Wireless Weather Station to a PC or portable computer to be analyzed subsequently. Data values can also be recorded with no limits. The analysis software included in the delivery allows to analyze and compare meteorological fluctuations by means of graphs and diagrams for a long period. The delivery includes all the elements you will need to set up the Wireless Weather Station.

Functions of the Wireless Weather Station

- Indoor temperature in Celsius or Fahrenheit

- Outdoor temperature in Celsius or Fahrenheit

- Indoor relative humidity

- Outdoor relative humidity

- Atmospheric pressure is shown in inHG or hPa

- Relative / Absolute humidity selection

- Rainfall is shown in mm or inch

- Rainfall indication for 1 hour, 24 hours, 1 week, 1 month or from the last reset.

- Selection of wind speed in mph, km/h, m/s, knots or Beaufort

- Indication of wind direction

- Wind Chill temperature indicator

- Dew point indication

- Weather forecast

- Weather forecast trend

- Storm warning

- Indication of meteorological values.

- Programmable alarm functions for different meteorological values.

- It can store maximum and minimum values

- LED with backlight displayvhv

- Radio clock

- Indication in 12 or 24 hours

- Calendar

- Set up of Time slot

- Energy saving function

- It can be placed on the wall or vertically

- Permanent adjustment of meteorological values and clock by means of a radio.

View / Print user's manual

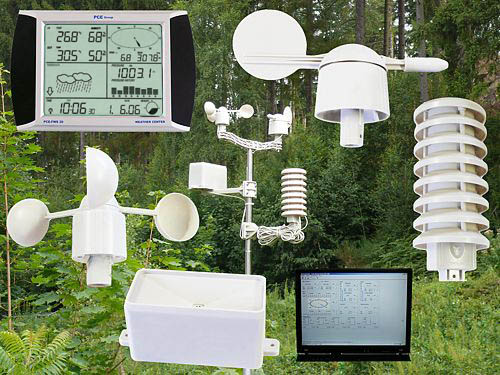

Here you will see the PCE-FWS 20 Wireless Weather Station with software and all the remote sensors which are coupled to the vertical mast (included in the delivery).

Set up of the alarm in the Wireless Weather Station

• Maximum indoor humidity alarm

• Maximum indoor temperature alarm

• Maximum outdoor humidity alarm

• Maximum outdoor temperature alarm

• Maximum Wind Chill alarm

• Maximum dew point alarm

• Maximum atmospheric pressure alarm

• Maximum wind speed alarm

• Maximum Gust alarm

• Rainfall alarm, 1 hour

• Rainfall alarm, 24 hours

• Minimum indoor humidity alarm

• Minimum outdoor temperature alarm

• Minimum outdoor humidity alarm

• Minimum outdoor temperature alarm

• Minimum Wind Chill alarm

• Minimum dew point alarm

• Minimum atmospheric pressure alarm

Measurement values to be stored
(with time and date)

• Maximum rainfall for 1 hour

• Maximum rainfall for 24 hours

• Maximum rainfall for one week

• Maximum rainfall for a month

• Minimum indoor humidity

• Minimum indoor temperature

• Minimum outdoor humidity

• Minimum outdoor temperature

• Minimum Wind Chill

• Minimum dew point

• Minimum atmospheric pressure

• Maximum indoor humidity

• Maximum indoor temperature

• Maximum humidity

• Maximum outdoor temperature

• Maximum Wind Chill

• Maximum dew point

• Maximum atmospheric pressure

• Maximum air velocity

• Wind direction

• Gust

Temperature and humidity sensor
of the PCE-FWS 20 Wireless Weather Station

Rain sensor of the
PCE-FWS 20 Wireless Weather Station

Air velocity sensor of the
PCE-FWS 20 Wireless Weather Station

Wind direction sensor of the
PCE-FWS 20 Wireless Weather Station

Operating temperature: 0 ... +60 °C

Humidity:                     1 ... 99 %

Atmospheric pressure:     919 ... 1080hPa

Air temperature:     0,1 °C

Humidity:         1 %

Atmospheric pressure:      0,1 / 1,5 hPa

48 seconds

120 seconds

Operating temperature: -40 ... +65 °C

Humidity:         1 ... 99 %

Rain fall:                 0 ... 9999mm

Wind speed:      0 ... 180 km/h

Indication of the wind direction

Air temperature:     0,1 °C

Humidity:         1 %

Rainfall:    0.1mm (volume <1000mm) / 1mm (volume >1000mm)

48 seconds

up to 100 m in the open air

USB

Power

 - Main Unit

 - Radio

3 x 1,5 V AA batteries

2 x 1,5 V AA batteries

Dimensions

 - Main Unit

 - Remote sensors

230 x 150 mm

660 x 540 mm

Delivery contents

1 x Main unit with touch screen,
1 x temperature sensor with a support,
1 x humidity sensor with a support,
1 x rainfall sensor with a support,
1 x air velocity sensor with a support,
1 x wind direction sensor with a support,
1 x vertical mast,
1 x USB cable,
1 x analysis software,
user's manual.
