Chiều dài cáp camera: 2000 mm

Đường kính cáp camera: 5,5 mm

Góc nhìn : ngàn 46º,dọc 34º, đường chéo 56º

Cảm biến hình ảnh công nghệ: CMOS

Ánh sáng nhỏ nhất: 0 lx

Màn hình hiển thị: 3,5 " TFT-LCD

Số điểm ảnh: 640 x 480

Video: PAL / NTSC

Kết nối Video: AV-out

Tần số truyền: 2,4 GHz 4 kênh, (2414, 2432, 2450 o 2468 MHz)

Tỷ lệ hình ảnh: JPEG

Định dạng Video: MPEG4

Tần số ảnh trên 1s: 30 / s

Thẻ nhớ: 1 Gb (SD memory card), mở rộng tới 2 Gb

Tầm nhìn của đầu camera: 1 ... 6 cm

Nguồn sáng: LED

Nhiệt độ hoạt động: -20 ... 60 ºC

Nguồn cung cấp: support (3.7 V accumulator), LCD  display (3.7 V accumulator, mains component)

Kích thước: support 140 x 35 x 32 mm, màn hình hiển thị: 147 x 89 x 70 mm

Cân nặng: support 220 g, LCD display:  340 g

Hãng sản xuất: PCE-Anh

Bảo hành: 12 tháng



Wireless Video Borescope PCE-VE 500

(useful length 1 / 2 m) LED illumination  / memory function / for the inspection of machine components of automotive, sanitary and electronical sectors, etc. / diameter of 5,5 mm

The LCD PCE-VE 500 wireless Video Borescope with flexible or semi-flexible wire is a professional instrument for workshops, installation works and other fields where the visualization of the interior or machines and installations is required as in the industry, biological sectors for the visualization of nests and in the arqueological sector. The LCD PCE-VE 500 wireless Video Borescope comes with a cordless digital display which allows the visualization of the images in the 3,5“ TFT display. Although the display can be removed, the image can be seen in the display thanks to the cordless connection (2,4 GHz). With a connection cable included in the delivery the LCD PCE-VE 500 Video Borescope can be connected to TV to see the image in a larger display. You may also register images or videos in the SD card for further analysis in your PC or portable computer. Both the boroscope and the display are powered by accumulator and mains component.



LCD PCE-VE 500 wireless video boroscope with LCD display.

  • Water-resistant cable
  • LED lamp of the video boroscope to allow for the visualization in dark areas and holes.
  • Camera of the video boroscope with an useful length of 1 m or 2 m.
  • Cable diameter of  5,5 mm
  • Continuous LED illumination
  • The image can be transferred to a receptor (LCD display) / 4 channels (2414, 2432, 2450 o 2468 MHz)
  • Registration function for images and videos in a SD memory card (1 Gb)
  • Image resolution of 640 x 480
  • Video output AV-out
  • Languages: Spanish, German, Chinese,French, English, Japanese.
  • Standard video: PAL/NTSC
  • Horizontal viewing angle: 46º

Wireless video boroscope (useful length 1 / 2 m).
View / print

user’s manual of the LCD
PCE-VE 500 wireless Video Borescope
wireless video boroscope: the user's manual

LCD PCE-VE 500 wireless video boroscope with LCD display: It is connected to the instrument through a USB port.

It is connected to the instrument through a USB port for data to be transferred and inspected as well as to charge the accumulator placed in the support. The accumulator can be charged when the Video Borescope is on/off.



Technical Specifications


Flexible cable length

2000 mm

Cable type

flexible

Cable diameter

5,5 mm

Viewing field / angle

horizontal 46º
vertical 34º
diagonal 56º

Image sensor

CMOS

Minimum illumination

0 lx

Size of the display

3,5 " TFT-LCD

Pixels

640 x 480

Video

PAL / NTSC

Video connection

AV-out

Transmitting frequency

2,4 GHz 4 channels
(2414, 2432, 2450 o 2468 MHz)

Picture aspect ratio

JPEG

Compression format

MPEG4

Image frequency

30 / s

Memory

1 Gb (SD memory card), open-ended to 2 Gb

Vision distance

1 ... 6 cm

Light source

LED

Operating / storage temperature

-20 ... 60 ºC

Powered

support (3.7 V accumulator)
LCD  display
(3.7 V accumulator, mains component)

Dimensions

support 140 x 35 x 32 mm
 LCD display 147 x 89 x 70 mm

Weight

support 220 g
LCD display 340 g

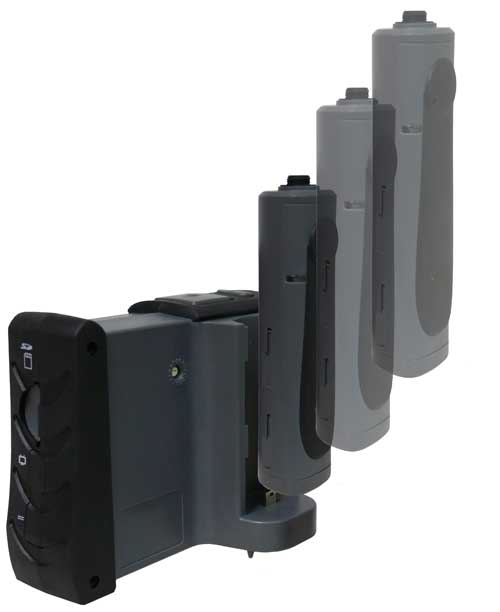

The PCE-VE 400/500 video boroscope can be used as a wireless instrument.        The PCE-VE 400/500 video boroscope can be used as a wireless instrument

The PCE-VE 500 Video Borescope can be used as a wireless instrument. (support with the probe)

Delivery contents
1 x PCE-VE 500 wireless Video Borescope (support, LCD display )

1 x SD memory card (1 Gb),
1 x microfibre cloth,
1 x mains component for the display,
1 x video cable,
1 x user’s manual

Delivery contents: LCD PCE-VE 500 wireless video boroscope with LCD display
