Khoảng đo nhiệt độ: -10 to 900°C, Uncooled Focal Plane Array
Số điểm đo trên màn hình/ Độ phân dải hình ảnh của vùng đo trên màn hình: 160 x 120 (19,200 pixels)
Cấp chính xác: ±15°C
Độ phân dải màn hình: 192 x 192 pixels
Tầm nhìn (FOV): 20º x 15º
Focus: 0.10ºC
Khoảng cách đo: 50cm trở lên
Chức năng đo: 2 điểm di chuyển khác nhau
Độ phân dải nhiệt độ: 1ºC
Tần số hình ảnh trên màn hình: 7.5Hz
Dải phổ: 8 to 14µm
Mức bức xạ: 0.2 to 1.0 (có thể điều chỉnh)
Bộ nhớ: MMC hoặc thẻ SD
Cổng kết nối: USB kiểu B
Màn hình hiển thị: 3.5"LCD, backlit, four colour scales (adjustable): rainbow, iron bow, grey scale and high contrast
Hiển thị nhiệt độ: ºC, ºF or K
Laser chỉ điểm: class II 1mW / 635nm
Điều kiện hoạt động: -15 to 45ºC; 10 to 90% r.h. không đọng nước
Nhiệt độ cất giữ: -20 to 70ºC
Nguồn cung cấp: AC adaptor, Pin sạc ion-litio
Thời gian hoạt động: 4 to 6  giờ
Vỏ thân máy làm bằng nhựa
Trọng lượng 750g
Kích thước: 230 x 120 x 110mm
Hãng sản xuất: PCE Anh
Bảo hành 12 tháng

with a measurement range of -10ºC to 900ºC, includes software

The core element of the PCE-TC 4 thermal imaging camera is its (Uncooled Focal Plane Array) with a resolution of 160 x 120 pixels. The thermal imaging camera is for high temperatures and has been designed to be ergonomic allowing the user to operate it with only one hand. As it only weighs 750 g, it is ideal for analysing installations, and construction works at a distance where a typical thermal imaging camera lens will offer an image that is too small to provide sufficient data. Another aspect of this feature of the PCE-TC 4 is that it can provide safety to the user by allowing meaurements at a greater distance from heavy machinery. The 3.5" LCD, which is unique for a product at this price, is a solid help to the user. The PCE-TC 4 thermal imaging camera offers a temperature range of 50°C to 900°C, with a resolution of 1°C. The camera's colour display can move the two cursors on different points and automatically read the corresponding temperature. This thermal imaging camera also provides the user with the possibility to automatically locate and view the hot spot and cold spot in the image and can measure differential temperature. With these functions, the user can immediately locate irregularities and take the most pertinent measurements while on the job. The integrated laser pointer also allows the user to accurately target the area needed to be measured and to capture the best possible image.
Images that are saved to the thermal imaging camera are stored in its SD memory card and can be transferred to a computer for further analysis. Continuous measurements can be taken if the device is connected to a computer using the USB port. Software is included with the camera, which allows the user to not only view and analyse images, but to generate reports.

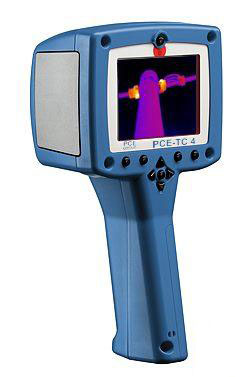

the display of the PCE-TC 4 Thermal Imaging Camera

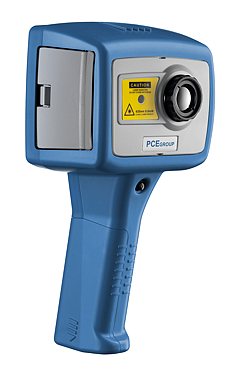

the PCE-TC 4 Thermal Imaging Camera

  • Accurate temperature measurement across the entire display

  • two moveable measurement points

  • Auto search of hot point, cold point from all points measured

  • 3.5" backlit LCD

  • resolution of 160 x 120 pixels

  • Temperature range: 50ºC to 900ºC

  • 2x digital zoom

  • Uncooled Focal Plane Array for maintenance free work

  • Ergonomic: use with only one hand

  • Perfectly balanced to prevent wrist fatigue during prolonged measurements

  • Weight: 750 g

  • Laser pointer: allows user to pinpoint the area of measurement

  • Memory card to store up to 1000 images

  • Lengthly operating time of up to 6 hours

  • Data transfer of images to a computer via USB

  • Software: for detailed analysis of images and easy reporting of data

  • Wide range of accessories





PCE-TC 4 thermal imaging camera

View or print the user's manual
PCE-TC 4 thermal imaging camera: View or print the user's manual.



Software
Stored images can be sent from the SD memory to a computer. Software offers access to every pixel and the capability to adjust all the parameters including emissivity, conditions such as temperature and relative humidity and distance.



PCE-TC 4 Thermal Imaging Camera: an image of the software



Features

 • Determine the temperature of all points
  • Determine on the display, maximum, minimum and average temperature
  • Select colour range
  • Possibility of Level and Span displacement
  • Detailed report generation
  • Automatic detailed reporting
  • Table of results with automatic indication of date, time, user and event


Technical specifications
Temperature range -10 to 900°C
Uncooled Focal Plane Array
Measurement points / resolution 160 x 120 (19,200 pixels)
Accuracy ±15°C
Display resolution 192 x 192 pixels
Field of vision (FOV) 20º x 15º
Focus 0.10ºC
Measurement distance 50cm to infinity
Functions of measurement two moveable measurement points, measurement of differential
Temperature resolution 1ºC
Image frequency 7.5Hz
Spectral range 8 to 14µm
Emissivity 0.2 to 1.0 (adjustable by 0.01)
Memory MMC or SD memory card
Port USB type B
Display 3.5"LCD, backlit, four colour scales (adjustable): rainbow, iron bow, grey scale and high contrast
Indication of temperature ºC, ºF or K
Laser pointer class II 1mW / 635nm
Operating conditions -15 to 45ºC; 10 to 90% r.h. without condensation
Storage temperature -20 to 70ºC
Mains connector AC adaptor
Battery ion-litio rechargeable
Operating time 4 to 6 hours
Enclosure plastic
Tripod screw 1/4"
Weight 750g
Dimensions 230 x 120 x 110mm

PCE-TC series thermal imaging camera in use

PCE-TC 4 Thermal Imaging Camera: thermal traces on pavement
thermal traces on a pavement

PCE-TC 4 Thermal Imaging Camera: the same image in grey scale
the same image in grey scale

PCE-TC 4 Thermal Imaging Camera: thermal image of a tyre
thermal image of a tyre

PCE-TC 4 Thermal Imaging Camera: the same image in grey scale
the same image in grey scale

PCE-TC 4 Thermal Imaging Camera: thermal image of a building
thermal image of a buidling facade

PCE-TC 4 Thermal Imaging Camera: image after software evaluation
image after software evaluation

PCE-TC 4 Thermal Imaging Camera: thermal image of a building
another image of a building facade

PCE-TC 4 Thermal Imaging Camera: heat radiation viewed
the high heat radiation can be seen

PCE-TC 4 Thermal Imaging Camera: thermal radiation
thermal radiation of buildings

PCE-TC 4 Thermal Imaging Camera: heat leaking from a window
thermal energy leaking from a window



Contents
PCE-TC 4 thermal imaging camera, rechargeable battery, charger, hand strap, software, USB cable, SD card, SD card reader, case and user's manual
