Chiều dài cáp: 800 mm (with joystick: 900 mm)

Công nghệ camera: CMOS

Độ phân dải động/ tĩnh: 320 x 240 / 640 x 480

Tần số hình ảnh trong 1s: 30 / s

Góc nhìn camera: 67 °

Khoảng cách từ vật tới camera: 1,5 ... 10 cm

Đèn sáng camera: 4LEDs

Đường kính cáp: 6,0 mm

Đầu camera:  quay đến 360º theo ý muốn

Góc uốn cong cáp camera: 90 mm

Màn hình hiển thị: TFT 3,5"

Cổng giao tiếp: Mini-USB 1.1 (AV out / AV in)

Bộ nhớ hình ảnh: 512 MB memory card SD (it can be increased to 2 GB)

Định dạng Video: MPEG4

Định dạng ảnh: JPEG (640 x 480)

Định dạng tín hiệu video ra: NTSC & PAL

Nhiệt độ làm việc, cất giữ: -10 ... +50 °C

Nguồn cung cấp: Pin sạc Lithium-Ion

Tổng trọng lượng: 450 g

Hãng sản xuất: PCE- Anh

Bảo hành: 12 tháng

Borescope with addressable head for the industry, workshops and development / with 512 MB memory card / it records images and videos / diameter of 6,0 mm / 360º addressable head/ for the inspection in situ of machine components , tubes, etc, research and development

The PCE-VE 350 borescope with addressable head is is an ideal tool for professionals, maintenance technicians and in development. The PCE-VE 350 borescope allows for visualisation of the interior of machines and installations without the need to dismantle them, to capture images and video sequences of moving components, save them to memory and later transfer these to a computer. The PCE-VE 350 borescope is ideal for maintenance and repair in industries and workshops. Never before has it been so easy to optically analyzer with the PCE-VE 350 borescope. The 800 mm long and 6,0 mm diameter flexible cable allows the access to small spaces. It's easy to use, simply insert the cable into a cavity and you will see an image on the display of what's visible inside. When necessary, these images can be transferred to a computer for further analysis or to send them to other people that might require the images for their work. Thanks to its flexible guide, light weight design and high quality optics, problematic area can be detected easily and quickly with the PCE-VE 350 borescope. This will allow for preventative measures to be taken without having to dismantle the machine first. With the PCE-VE 350 borescope you can take and image for further analysis as for instance when there is a reparation it is possible to compare the initial and the final state.

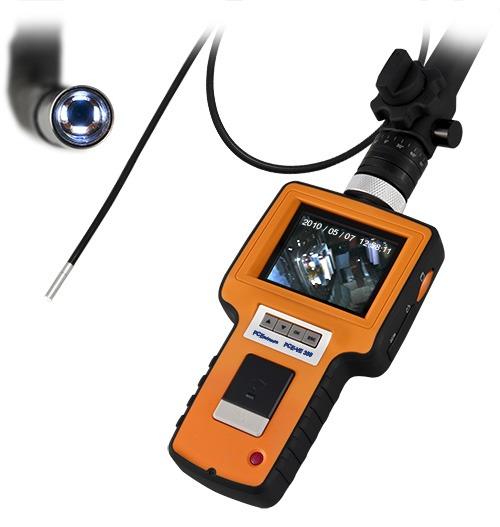

borescope PCE VE 350 photo main

You can save time and money at dismantling meachinery when using the PCE-VE 320/330 borescope daily for maintenance and inspection of machines and installations.

- A LED lamp illuminates holes and dark areas.

- The flexible cable allows for access to areas that
  are difficult to reach.

- The cable diameter is only 6,0 mm

- Ideal for capturing images and videos to save
  them in the memory of the device.

-  360º addressable head

-  512 MB memory card
   (it can be increased to 2 GB)

- Powered by a 3.7V rechargeable battery

- The delivery includes software, data cable, flash
  card, carrying case and user's manual

View / print user's manual of the PCE-VE 350 borescope with addressable head
View / print user's manual of the PCE-VE 350 borescope with addressable head

borescope PCE VE 350 control tube

borescope PCE VE 350 animacion

borescope PCE VE 350 photo uso1

Technical specifications

Flexible cable length

800 mm (with joystick: 900 mm)

Image sensor

CMOS

Resoution / Image sensor (dynamic / static)

320 x 240 / 640 x 480

Image frequency

30 / s

Exposure

automatic

White scale

fixed

Field of view / angle of view

67 °

Distance of view

1,5 ... 10 cm

Ilumination

4LEDs

Cable diameter

6,0 mm

Head

 360º addressable head

Curvature radius

90 mm

Display

TFT 3,5"

Interface

Mini-USB 1.1 (AV out / AV in)

Image memory

512 MB memory card SD (it can be increased to 2 GB)

Compression format

MPEG4

Image format

JPEG (640 x 480)

Video output format

NTSC & PAL

Operating / Storage temperature

-10 ... +50 °C

Power

rechargeable Lithium-Ion battery

Weight with carrying case

450 g

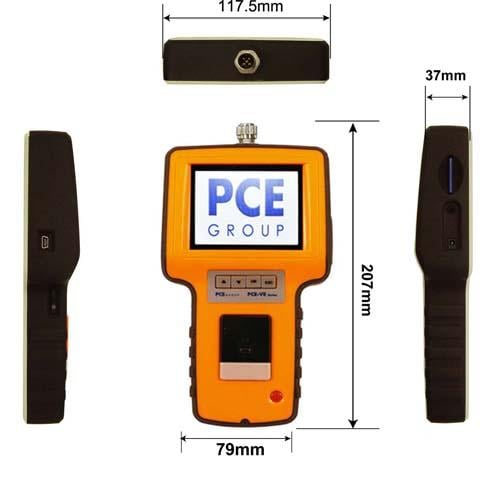

Dimensions

borescope pce ve 350 dimensions

Delivery contents
1 x  PCE-VE 350 borescope with addressable head, 1 x 512 MB SD memory card, 1 xUSB cable, 1 x aluminium carrying case, charger and user's manual
Please note: Not to be used for medical applications!

Optional accessories

GB-15-PCE-VE-N
Guide weight for series PCE-VE-NØ 15 mm, only for videoendoscopes with cable Ø 5.5 mm

Guide weight Ø 15 mm for the Endoscope PCE VE 350.

GB-25-PCE-VE-N
Guide weight for series PCE-VE-NØ 25 mm
only for videoendoscopes with cable Ø 5.5 mm

Guide weight for series PCE-VE-NØ 25 mm for the Endoscope PCE VE 350.

MAG-H-VE-N
2 in 1 hook and magnet for series PCE-VE-N
(5.5 mm)

2 in 1 hook and magnet for the Endoscope PCE VE 350.

SOFT-M-VE-N
Measurement software for series PCE-VE-N videoendoscopes (only for 5.5 mm probes)

Measurement software for the Endoscope PCE VE 350.

PCE-VE-N-SCS
1 m semiflexible probe, Ø 3.9 mm, for series PCE-VE-N videoendoscopes

1 m semiflexible probe, Ø 3.9 mm for the Endoscope PCE VE 350.

PCE-VE-2in1-N
2 in 1: 1 m semiflexible probe, Ø 4.9 mm, with front and side camera, for series PCE-VE-N videoendoscopes

2 in 1: 1 m semiflexible probe, Ø 4.9 mm for the Endoscope PCE VE 350.

RM-39-PCE-VE
Mirror sheath for 3.9 mm probe Series PCE-VE-N
90 º mirror/rotary in 360 º/length: 15 cm

Mirror sheath 3,9 mm / 90 º mirror / rotary in 360 º / length: 15 cm for the Endoscope PCE VE 350.

PCE-VE-N-SC1
Probe for PCE-VE N videoendoscopes Probe for 1 m/Ø 5.5mm/semiflexible

Probe 1 m/Ø 5.5mm/semiflexible for the Endoscope PCE VE 350.

PCE-VE-N-SC2
Probe for PCE-VE N videoendoscopes Probe for 2 m/Ø 5.5mm/semiflexible

Probe 2 m/Ø 5.5 mm/semiflexible for the Endoscope PCE VE 350.

PCE-VE-N-SC10
Probe for PCE-VE N videoendoscopes Probe for 10 m/Ø 5.5mm/semiflexible

Probe 10 m/Ø 5.5 mm/fleixble for the Endoscope PCE VE 350.

PCE-VE-2W1-N
Rotary probe for videoendoscopes                               1 m/Ø 6 mm/flexible.

Rotary probe 1 m/Ø 6 mm/flexible for the Endoscope PCE VE 350.

HT-55-PCE-VE
Support for videoendoscope probe series PCI-VEN length: 60 cm/Ø 8 mm/with handle.

Support  60 cm/Ø 8 mm/with handle for the Endoscope PCE VE 350.
