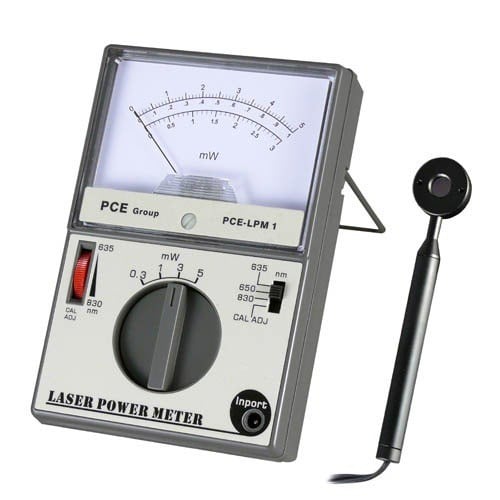

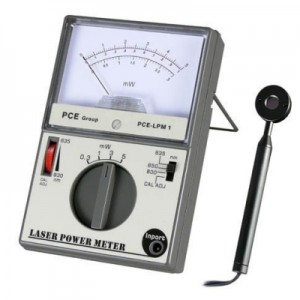

PCE-LPM 1 laser power meter
special power meter to check laser power / four measuring ranges (0.3, 1, 3 and 5 mW) / easy-to-use / compact housing

The PCE-LPM 1 laser power meter receives the laser beam through a sensor to analyze the power. Wavelength can be switched in the PCE-LPM 1 laser power meter in three different ranges (635/650 and 830 nm). The PCE-LPM 1 laser power meter has 4 measuring ranges available: 0.3, 1, 3 and 5 mW. Wavelength ranges of the power meter for optical measurement of helium-neon meters or for laser measurements in CD readers. The PCE-LPM 1 laser power meter meets the security standards (IEC-1010-1; CAT II). The delivery includes a probe sensor, a carrying case and user’s manual.

View/ print user’s manual of the PCE-LPM 1 laser power meter

The PCE-LPM 1 laser power meter to measure optical light sources is highlighted for the following factors:

  - Easy to use
  - Meets security standards
  - Silicone diode photo sensor
  - Compact housing
  - Good relation between price and quality

Check the laser power of your helium-neon devices during its manufacturing, production and application.

Measurement ranges of laser light sources

635/650 and 830 nm

Output level ranges

0,3 / 1 / 3 / 5 mW

0,1 mW

Accuracy

<±5 % del valor final

Photodiode

Silicone diode

Sensor diameter

max. 9 mm

Sensor head dimensions

23,5 x 120,5 x 6,6 mm

98 x 141  35 mm

Weight

240 g

Delivery contents
1 x PCE-LPM 1 laser power meter, 1 x sensor, 1 x carrying case and user’s manual.
