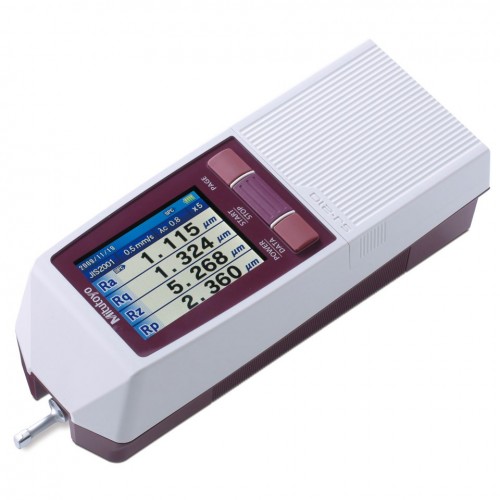

Máy đo độ nhám bề mặt Mitutoyo Surftest SJ-210 có 2 model

  • Mitutoyo 178-561-01E lực đo 0.75mN
  • Mitutoyo 178-561-02E lực đo 4mN
  • Tiêu chuẩn: JIS
  • Xuất xứ: Japan
  • Bảo hành: 1 Năm

Mitutoyo Surftest SJ-210- Series Mitutoyo Series 178 Portable Surface Roughness Tester

Features

  • The 2.4-inch color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate. The LCD also includes a backlight for improved visibility in dark environments.
  • The Surftest SJ-210 can be operated easily using the buttons on the front of the unit and under the sliding cover.
  • Up to 10 measurement conditions and one measured profile can be stored in the internal memory.
  • An optional memory card can be used as an extended memory to store large quantities of measured profiles and conditions.
  • Access to each feature can be password-protected, which prevents unintended operations and allows you to protect your settings.
  • The display interface supports 16 languages, which can be freely switched.
  • An alarm warns you when the cumulative measurement distance exceeds a preset limit.
  • The Surftest SJ-210 complies with the following standards: JIS (JIS-B0601-2001, JIS-B0601-1994, JIS B0601-1982), VDA, ISO- 1997, and ANSI.
  • In addition to calculation results, the Surftest SJ-210 can display sectional calculation results and assessed profiles, load curves, and amplitude distribution curves.

Specifications

Order No. 178-561-01E 178-561-02E
Model No SJ-210 SJ-210

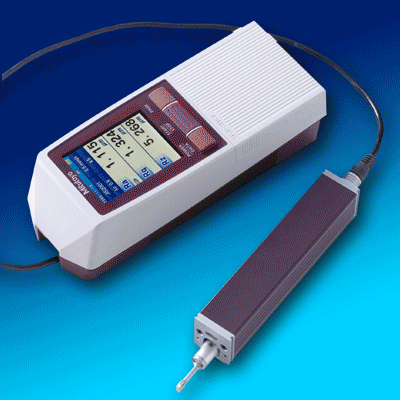

Image - SJ210-animation.gif
Drive Unit Standard type
(178-230-2)
Standard type
(178-230-2)
Detector 0.75mN type
(178-296)
4mN type
(178-390)
Display unit Compact type
(178-253A)
Compact type
(178-253A)
Stylus tip radius 2µm 5µm
Dect measuring force 0.75mN 4mN

May do do nham Mitutoyo
