-Khoảng đo:  0.8mm ~ 225.0 mm
-Đo với các loại vật liệu sau: sắt, thép, nhựa,
 thủy tinh, vàng và các loại vật liệu đồng chất khác.
-Tần số phát của sensor: chuẩn 5 MHz .
- Đường kính đầu dò 11mm
-Độ phân giải: 0.1mm
-Hiệu chỉnh:   tấm thép  chuẩn dầy 3.0mm
-Độ chính xác:  ±0.1mm
-Khoảng đo vận tốc sóng âm trong vật
 lệu: 500 ~ 9999 m/s (có thể điều chỉnh tùy
 thuộc vào vật liệu đo).
-Độ phân giải (vận tốc sóng âm): 1 m/s
- Màn hình LCD hiển thị 4 con số.
-Nhiệt độ chuẩn của bề mặt đo trong khoảng:
 -10 ~ 50°C (với loại đầu đo đặc biệt có thể chịu
nhiệt độ lên đến 400°C.
- Điều kiện hoạt động: 0 ~ 40°C; 20 ~ 90% r.h.
-Nguồn: 2 pin AA, thời gian hoạt động liên tục 250 giờ.
-Cảnh báo mức pin yếu.
-Tính năng tự động tắt sau 3 phút để tiết kiệm pin.
-Kích thước: 124 x 67 x 30mm
-Khối lượng:  240g bao gồm pin.
Hãng sản xuất : PCE - Anh

Bảo hành; 12 tháng

Material Thickness Meter for materials such as metals, glass and homogeneous plastics
(with sound velocity adjustment)

The PCE-TG100 Material Thickness Meter can determine the thickness of metals, glass and homogeneous plastics in seconds. This Material Thickness Meter is easy to use and takes highly accurate measurements of the thickness of walls and different materials. Each material requires a different velocity of sound. The Material Thickness Meter comes preset from the factory with 5 different sound velocities for different materials. This device can measure thickness of metals, glass, plastics as well as other homogeneous materials. The sound velocity can be adjusted by the user allowing for the device to be set for use with a more diverse range of materials. The ultrasound sensor has a measurement head that can be located inside a elastic black ring. This ring has sectioned circular cuts allowing for measurement of straight, flat or circular surfaces. If measurements need to be taken in tight places, the screw for the sensor head adaptor can easily be removed so that the sensor can be used directly on the surface (diameter of 11mm). The Material Thickness Meter comes calibrated. An optional laboratory ISO calibration with certificate can be ordered.

  • For use with metals, glass and homogeneous plastics

  • With 5MHz sensor included (up to 400°C)

  • Resolution of 0.1mm

  • 4 digit LCD

  • Backlit display

  • Battery level indicator

  • Coupling gel to be used between the sensor and the object being measured

  • Automatic calibration

  • 3.0mm steel calibration plate

the PCE-TG100 material thickness meter for materials such as metals, glass and homogeneous plastics.

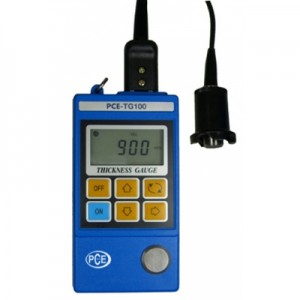

PCE-TG100 Material Thickness Meter


View or print the user's manual
 PCE-TG100 material thickness meter: the user's manual


Technical Specifications

Measurement range 0.8mm to 225.0mm
Measurement range for steel pipes minimum thickness of 3mm x 20mm diameter
Materials iron, steel, plastic, glass, gold and other homogeneous materials
Frequency standard 5 MHz,
probe diameter 11mm
Resolution 0.1mm
Calibration integrated 3.0mm steel plate
Accuracy ±0.1mm
Sound velocity range 500 to 9999 m/s (freely adjustable, depending on the material being measured)
Sound velocity resolution 1 m/s
Display 4 digit LCD
Probe surface temperature standard -10 to 50°C
(with special probe up to 400°C)
Operating conditions 0 to 40°C; 20 to 90% r.h.
Battery indicator low battery warning
Power 2 AA batteries
Operating time 250 hours
Auto shut-off to protect battery power
(after 3 minutes of inactivity)
Dimensions 124 x 67 x 30mm
Weight 240g including batteries

Images of use

the PCE-TG100 material thickness meter measuring a steel plate

Material Thickness Meter on a steel plate

the PCE-TG100 material thickness meter measuring a steel plate

Material Thickness Meter on a plastic plate

the PCE-TG100 material thickness meter measuring a pipe

Material Thickness Meter measuring a pipe.

recalibration of the PCE-TG100 material thickness meter

Recalibration of a Material Thickness Meter

Delivery contents
PCE-TG-100 Material Thickness Meter, sensor head with 1m cable, 2  batteries, tube of coupling gel, hand fastener, carrying case and user's manual
