Maximum measurement load

50.000 N / 5.000 kg

Resolution

10 N / 1 kg

Dynamometric cell cable length

approx. 3 m

Measurement uncertainty

±0,05 % of the measurement value

Gravitation map

manual setting by means of a GPS

Measuring units

N, g, lb, oz, kg

Calibration

with F2 calibration weights

maximum overload

±20 % of the measurement range

Measurement rate

adjustable 10 values/s or 40 values/s

Measurement function

Traction and compression measurement / PEAK function (max, min, Hold) / measurement of limit values / real time measurements by means fo the software

Display

61 x 34 graphic display / simultaneous indication of relevant values such as date, time and current measurement value / automatic reverse display / setting of backlight, etc...

Menu

multilingual: German / English / Spanish

Internal memory

8 memory positions with 800 respective measurements

Record

manual - pressing one button
automatic - 0,025 s - 99,9 s

Interface

RS-232, 9 poles

Printer connection

through the RS-232 interface

Software and data cable

with software for the control and valuation l

Operating conditions

-10 ºC ... +40 ºC

Power supply

internal NiMH accumulator
~230 V / 12 V mains adapter included
Setting of the auto shut-off function

Accumulator duration

approx. 20 h (without backlight, approx.  45)

Dimensions

210 x 110 x 40 mm

Weight

550 g (without the dynamometric cell)

Hãng sản xuất: PCE - Anh

Bảo hành: 12 tháng

Traction and compression force gauge / internal memory / external cell / graphic display / statistic valuation / measurement of limit values / PEAK function / software included

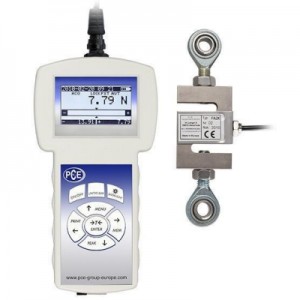

The hand-held PCE-FG K series force gauge measures pressure and compression force. The PCE-FG K series force gauge has an external dynamometric cell with a 3 m cable. The PCE-FG K series force gauge for traction and compression forces has two adjustable velocities which allow for an optimal real time record of traction and compression measurements. The PCE-FG K series force gauge has a wide internal 8-positions memory with 800 measurements. The measurement is manually performed by pressing a button or it can be automatic if the measurement rate has been previously set. The PCE-FG K series force gauge has a reversible graphic display. The PCE-FG K series force gauge offers a statistics valuation which includes details such as the number of measurements, total force, average force, max. and min. values, single values and histogram graphic representation. The PCE-FG K series force gauge with external dynamometric cell allows to print data as a GLP / ISO protocol by means of a direct connection to the printer. The software included in the delivery enables a real time record as well as a valuation of the measurement values. The PCE-FG K series force gauge also features the simultaneous display of max. and min. values. Measuring units can be set: N, kg, g, lb and oz. The menu of the PCE-FG K series force gauge is available in three different languages. The PCW-FG K series force gauge uses the gravitational force.

PCE-FG K series force gauge with internal memory and external cell.

  • External dynamometric cell

  • Traction and compression force gauge

  • High measurement rate can be ser

  • Accuracy 0,02 %

  • PEAK function (min./max.)

  • Limit value function

  • Limit value function / setting of the measurement value

  • Different measuring units

  • It can be calibrated by means of external calibration weights.

  • Manual or automatic measurement

  • Memory of 8 x 800 measurement values

  • Graphic valuation

  • Graphical display that automatically reverses

  • Menu: German, English, Spanish

  • Software included

  • Date and time

  • Printing of the GLP / ISO protocol

  • Automatic shut-off

  • Max. overload 20%

  • Low battery indication

  • It can be powered by a mains component



View / print user's manual of the
PCE-FG K series force gauge
User's manual of the PCE-FG K series force gauge

Technical specifications

Maximum measurement load

50.000 N / 5.000 kg

Resolution

10 N / 1 kg

Dynamometric cell cable length

approx. 3 m

Measurement uncertainty

±0,05 % of the measurement value

Gravitation map

manual setting by means of a GPS

Measuring units

N, g, lb, oz, kg

Calibration

with F2 calibration weights

maximum overload

±20 % of the measurement range

Measurement rate

adjustable 10 values/s or 40 values/s

Measurement function

Traction and compression measurement / PEAK function (max, min, Hold) / measurement of limit values / real time measurements by means fo the software

Display

61 x 34 graphic display / simultaneous indication of relevant values such as date, time and current measurement value / automatic reverse display / setting of backlight, etc...

Menu

multilingual: German / English / Spanish

Internal memory

8 memory positions with 800 respective measurements

Record

manual - pressing one button
automatic - 0,025 s - 99,9 s

Interface

RS-232, 9 poles

Printer connection

through the RS-232 interface

Software and data cable

with software for the control and valuation l

Operating conditions

-10 ºC ... +40 ºC

Power supply

internal NiMH accumulator
~230 V / 12 V mains adapter included
Setting of the auto shut-off function

Accumulator duration

approx. 20 h (without backlight, approx.  45)

Dimensions

210 x 110 x 40 mm

Weight

550 g (without the dynamometric cell)

Display indication

Date and time, battery low indication, velocity of measurement, force and max. and minimum values.
Date and time, battery low indication, velocity of measurement, force and max. and minimum values.

Memory data as a diagram format. It is possible to check single details.
Memory data as a diagram format. It is possible to check single details.

Frequency distribution of the PCE-FG K series force gauge.
Frequency distribution of the PCE-FG K series force gauge.

8-positions memory which can be individually identified, 800 measurements.
8-positions memory which can be individually identified, 800 measurements.

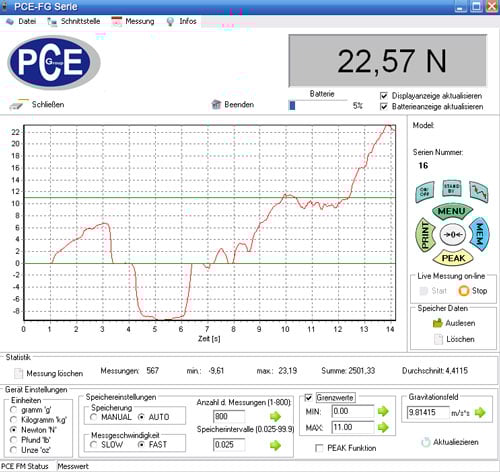

Software

Software of the PCE-FG K series force gauge

The PCE-FG K series force gauge with dynamometric cell to measure traction and compression forces is delivered together with a software. The software allows the user to read and check values detected with the force gauge. The force gauge shows a traction and compression measurement with limit values. Below, you will find a statistical valuation of the measurement, max., min. and average value as well as the different settings of the PCE-FG K series force gauge.

Delivery contents
1 x PCE-FG K series force gauge for traction and compression forces, 1 x external dynamometric cell, 1 x mains component, 1 x software, 1 x transmission cable RS-232, 2 x carrying cases
