Dải đo 147,1 Ncm / 13,02 lbfin / 15 kgfcm
Độ phân dải
 - Độ phân dải cao
 - Độ phân dải thấp

0,1 Ncm / 0,01 lbfin / 0,01 kgfcm
1 Ncm / 0,1 lbfin / 0,1 kgfcm

Cấp chính xác

±1,5 % + 5 digits

Giữ giá trị đỉnh

chức năng Data-Hold / máx. y mín. / Peack-Hold

đơn vị đo

Ncm, kgfcm, lbfin
Bảo vệ quá tải máx. 150 %
cổng kết nối máy tính RS-232
phần mềm lựa chọn mua thêm

Màn hình

LCD

nhiệt độ hoạt động

0 ... +50 ºC, below 80 % H.r
Nguồn cung cấp   pin 9 V
Trọng lượng
 - Thân máy
 - cảm biến ngoài

approx. 225 g
approx. 665 g
Kích thước
 - thân máy
 - Cảm biến


180 x 72 x 32 mm
Ø 48 x 160 mm

Hãng sản xuất: PCE Anh
Bảo hành: 12 tháng

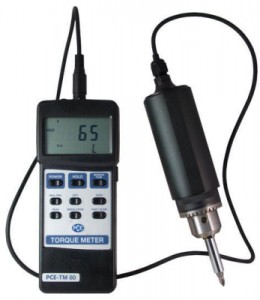

Digital Torque Meter PCE-TM 80
meter to determine the “torque moment” up to 147 Ncm / PC interface and software (option) / Peak-Hold function / external torque sensor / selection of diverse units / selection of the resolution

The Digital Torque Meter PCE-TM 80 with external sensor to measure the torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to perform easily torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the possibility (according to the application) to enlarge 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. By means of the optional software real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very solid to ensure both long duration and reliability.


Digital torque meter PCE-TM 80

- Range 0 ... 147 Ncm
- Selection of  3 units (Ncm, kgfcm, lbfin)
- Digital output RS-232
- External torque sensor
- Optional software
- Selection of the resolution

- Automatic shut-off
- Peak-Hold function
- ISO Calibration certificate (option)

View / print user’s manual of the

Digital Torque Meter PCE-TM 80
View / print user’s manual of the torque meter PCE-TM 80.

The torque meter PCE-TM 80 measuring the torque moment in a grinder.
The Digital Torque Meter PCE-TM 80 measuring the torque moment in a grinder
Current values can be directly read in the display of the torque meter PCE-TM 80
Current values can be directly read in the display of the Digital Torque Meter PCE-TM 80

Technical peScifications
Measurement range 147,1 Ncm / 13,02 lbfin / 15 kgfcm
Resolution
 - High resolution
 - Low resolution

0,1 Ncm / 0,01 lbfin / 0,01 kgfcm
1 Ncm / 0,1 lbfin / 0,1 kgfcm

Accuracy

±1,5 % + 5 digits

Peak-Hold function

yes
Additional functions Data-Hold / máx. y mín. / Peack-Hold

Units

Ncm, kgfcm, lbfin
Overload protection máx. 150 %
Output RS-232
Software option

Display

LCD

Operating temperature

0 ... +50 ºC, below 80 % H.r
Power supply 9 V battery
Weight
 - Main unit
 - External sensor

approx. 225 g
approx. 665 g
Dimensions
 - Main unit
 - External sensor


180 x 72 x 32 mm
Ø 48 x 160 mm

Here you can see a section of the optional software for the torque meter PCE-TM 80 (selection of diverse settinfs for its valuation)
Here you can see a section of the optional software for the Digital Torque Meter PCE-TM 80 (selection of diverse settings for its valuation)

Delivery contents

1 x Digital Torque Meter PCE-TM 80,
1 x external sensor,
1 x chuck ley,
1 x plastic carrying case,
user’s manual

Contents of the torque meter PCE-TM 80
