Dải đo	0 to 2000 W/m²
Độ phân dải	1 W/m2
Cấp chính xác	±10 W/m² or ±5% (highest value is correct)
Dải phổ	400 to 1100nm
Bộ nhớ	32,000 giá trị đọc
Measurement quota	adjustable
Cổng truyền thông	RS-232 port
Màn hình	LCD
Điều kiện hoạt động	0 to 50ºC; <80% r.h.
Nguồn	4 pin Lithium-ion (khoảng 16 ngày khi sử dụng liên tục)
Kích thước	111 x 64 x 34mm
Trọng lượng	165g

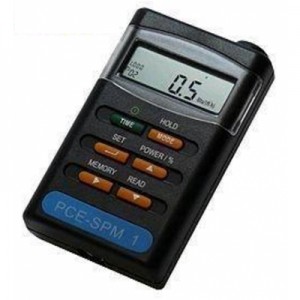

PCE-SPM 1 Solar Radiation Detector with integrated sensor that determines energy efficiency in photovoltaic systems / also used to find the optimum location for new installations
The PCE-SPM 1 Solar Radiation Detector is the optimal device for solar engineers, architects and those working in the field of solar engineering. This Solar Radiation Detector will measure solar power. Parameters such as current and voltage can also be measured with an optional multimeter with data logger, device. This allows the user to take measurements over extended periods of time to determine the compilation and layout of a photovoltaic system. Light intensity is measured using a silicon crystal. The integrated processor in the Solar Radiation Detector is responsible to make automatic corrections to ensure accuracy after calibrating each device in the solar simulator. The most important parameter is P_tot (in W/m²) and can be seen clearly on the display. Data saved in the internal memory (32,000 readings) can be transferred to a computer by way of software and cable connection. This Solar Radiation Detector has been developed for the use outside and is made of a durable enclosure that is weather resistant. Its compact design makes it an ergonomic device.
Measurements of solar energy can be taken in situ , power output/ insolation: P_tot Measurements can be taken over periods of time thanks to the internal memory for up to 32,000 readings Software to analyse and transferring data comes included Possibility to make a comparative solar measurement Minimum, maximum and data hold functions Powered by 4 lithium-ion batteries for approx. 16 days of continuous use	PCE-SPM 1 Solar Radiation Detector View or print the user's manual
Examples of use
1. Solar measurement in situ With the rdiation meter, a measurement can be taken of the energy in a specific location. These readings can be used to verify the operating ratio of modules or photovoltaic installations. 2. Simulation of temperature, power, voltage and current of photovoltaic modules. Note: a multimeter that we have available. 3. Prolonged measurements The device is equipped with an internal data logger to take measurements over extended periods of time. Solar radiation The radiation meter recognizes complete solar radiation; the direct radiation as well as diffused solar radiation in the atmosphere. The biggest amount of the solar radiation that is reflected by the sun is in the visible infrared spectrum , as ultraviolet radiation is absorbed by the atmosphere. Solar radiation can last up to a year, as the angle of reflection is greater in the summer than it is in the winter and the rays fall more directly on the surface of the earth.
Technical Specifications
Measurement range	0 to 2000 W/m²
Resolution	1 W/m²
Accuracy	±10 W/m² or ±5% (highest value is correct)
Spectral range	400 to 1100nm
Memory	32,000 readings
Measurement quota	adjustable
Data transmission	RS-232 port
Display	LCD
Operating conditions	0 to 50ºC; <80% r.h.
Power	4 Lithium-ion batteries (approx. 16 days of continuous use)
Dimensions	111 x 64 x 34mm
Weight	165g
Delivery contents PCE-SPM 1 Solar Radiation Detector, internal sensor, RS-232 cable, software, 4 batteries, carrying case and user's manual
