Thiết bị đo nhiệt độ tiếp xúc PCE-T312 -200~1.372°C

Contact thermometer with two channels

The PCE-T312 digital contact thermometer has two channels. Thanks to its backlight the PCE-T312 contact thermometer can be used in dark and difficult access places. Normally, a measurement of temperature is done before and after an action or procedure, as for instance while a machine is operating. The PCE-T312 digital contact thermometer can be useful in these matters. By pressing a button, the difference between the T1 and T2 temperature will be shown in its big display.

• Two channels thermometer

• Ideal for type K temperature sensors.

• Selectable: ºC or ºF

• Big LCD display

• Maximum and minimum functions

• Data Hola function

• Low battery indication

• Backlight

• Thermal thread sensor up to 260ºC included in the delivery.

View / print user’s manual of the
PCE-T312 contact thermometer

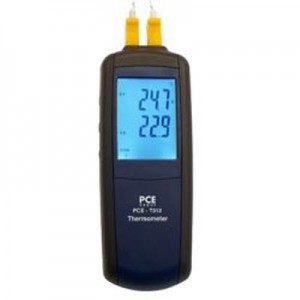

PCE-T312 contact thermometer


Technical specifications

Measurement range

- 200 ... 1.372 °C

Resolution

- 200 ... + 1000 °C: 0,1 °C
200 ... 1.370 °C: 1 °C

Accuracy
 - 100 ... + 1372 °C
 - 100 ... -200 °C
   T1 ... T2

0,15 % of the measurement value ± 1 °C
0,5 % of the measurement value ± 2 °C
0,5 % of the mean value + 1 °C

Termo-element

Ni Cr-Ni / type K

Connectors for temperature sensors

standard

Display

big LCD

Power

3 x 1,5 V AAA batteries

Operating temperature

0 ... + 50 °C , under 80 % H.r.

Dimensions

150 x 50 x 35 mm

Weight

200 g

Using the PCE-T312 contact thermometer

Here you can see the PCE-T312 thermometer used to see a difference of temperature.

Here you can see the thermometer inside its case included in the delivery.

Delivery contents
1x PCE-T312 contact thermometer, 2 x temperature sensors, 1 x case, 3 x batteries and user’s manual.
