Bộ kit đo điện đa năng Fluke 1587/ET

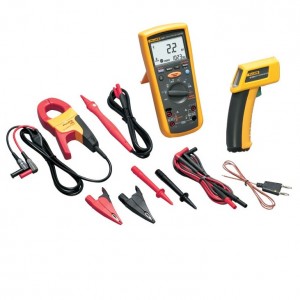

(ảnh Bộ kit đo điện đa năng Fluke 1587/ET)

Bộ kit đo điện đa năng Fluke 1587/ET bao gồm Đồng hồ vạn năng và súng đo nhiệt độ Fluke 62

Voltage DC
Maximum Voltage	1000 V
Accuracy	±(0.09%+2)
Maximum Resolution	0.001V
Voltage AC
Maximum Voltage	1000 V
Accuracy	±(2%+3)
AC Bandwidth	5kHz with low pass filter; 3db @ 800 Hz
Maximum Resolution	0.1 mV
Current DC
Maximum Amps	400mA
Amps Accuracy	±(0.2%+2)
Maximum Resolution	0.01 mA
Current AC
Maximum Amps	400mA
Amps Accuracy	±(1.5%+2) 1kHz bandwidth
Maximum Resolution	0.01 mA
Resistance
Maximum Resistance	50 MΩ
Accuracy	±(0.9%+2)
Maximum Resolution	0.1Ω
Capacitance
Maximum Capacitance	9,999 μF
Accuracy	±(1.2%+2)
Maximum Resolution	1 nF
Frequency
Maximum Frequency	100 kHz
Accuracy	±(0.1%+1)
Maximum Resolution	0.01 Hz
Temperature Measurement	-40.0 °C to 537 °C -40.0 °F to 998 °F excluding probe
Diode Test
Range	6 V
Resolution	1 mV
Accuracy	±(2 % + 1)
Insulation Test
Minimum Test Current @ 1kΩ/V	1mA
Test Voltages	50, 100, 250, 500, 1000 V
Maximum Resistance per Test Voltage	100V: 2 GΩ
Maximum Resolution per Test Voltage	50V: 0.01 MΩ 100V: 0.01 MΩ 250V: 0.1 MΩ 500V: 0.1 MΩ 100V: 0.1 MΩ
Accuracy per Test Voltage	50V: ±(3 % + 5) 100V: ±(3 % + 5) 250V: ±(1.5 % + 5) 500V: ±(1.5 % + 5) 100V: ±(1.5 % + 5) to 600 MΩ, ±(10 % + 3) above 600 MΩ
Environmental Specifications
Operating temperature	?20 °C to +55 °C
Storage temperature	-40°C to +60°C
Humidity (Without Condensation)	0% - 95% (10 °C – 30 °C) 0% - 75% (30 °C – 40 °C) 0% - 40% (40 °C – 55 °C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency Approvals	2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical & General Specifications
Size	203 x 100 x 50 mm (with holster)
Weight	624 g
Warranty	3 years
Battery life Alkaline	Meter use 1000 hours
Insulation test use	Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP Rating	IP40

Fluke i400
Nominal current range	400A
Continuous current range	1 A - 400 A
Maximum Non-Destructive Current	1000 A
Lowest measurable current	1 A
Basic accuracy	2% + 0.06 A (45-400 Hz) (% reading + floorspec)
Useable frequency	5 Hz - 20 kHz
Output level(s)	1 mA/A
Safety Specifications
Safety	CAT IV 600 V, CAT III, 1000 V
Maximum voltage	1000 V AC rms from earth to ground, in compliance with EN61010
Mechanical & General Specifications
Warranty	1 year
Maximum conductor diameter	32 mm (1.25 inches)
Maximum conductor size (busbar)	750 MCM
Output cable length	1.5 m (59 inches)
Shrouded banana plugs	Yes

Fluke 62
Backlit display for use in poorly lit areas	Yes
Holds temperature readings	Yes
Range	-30 to 500 °C (-20° to 932 °F)
MIN/MAX/AVG	MAX
Datalogging	N/A
Distance to spot ratio	10:1 at 80% energy
Hi-Lo Alarm	N/A
Optional RTD probe (contact temperature measurement)	N/A
Emissivity	Fixed at 0.95
Measurement Accuracy	10 °C to 30 °C (50 °F to 86 °F) : ± 1 °C (2 °F) Outside 10 °C to 30 °C (50 °F to 86 °F) : ± 1.5 °C (3 °F) or ± 1.5 % of reading, whichever is greater
