| Accuracy specifications | ||||
| Function | Range | Resolution |
Accuracy ± ([% of Reading] + [Counts]) |
|
| DC Millivolts | 600.0 mV | 0.1 mV | 0.5 % + 2 | |
| DC Volts |
6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
0.5 % + 2 | |
| Auto-V LoZ true-rms | 600.0 V | 0.1 V |
DC, 45 Hz to 500 Hz: 2.0% + 3 500 Hz to 1 kHz: 4.0% + 3 |
|
| AC millivolts true-rms | 600.0 mV | 0.1 mV |
45 Hz to 500 Hz: 1.0% + 3 500 Hz to 1 kHz: 2.0% + 3 |
|
| AC volts true-rms |
6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
45 Hz to 500 Hz: 1.0% + 3 500 Hz to 1 kHz: 2.0% + 3 |
|
| Continuity | 600 Ω | 1 Ω |
Beeper on < 20 W, off > 250 W; detects opens or shorts of 500 µs or longer |
|
| Ohms |
600.0 Ω 6.000 kΩ 60.00 kΩ 600.0 kΩ 6.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.9% + 2 0.9% + 1 0.9% + 1 0.9% + 1 0.9% + 1 1.5% + 2 |
|
| Input characteristics | ||||
| Function |
Input impedance (nominal) |
Common mode rejection ratio (1 kW unbalanced) |
Normal mode rejection | |
| Volt AC | > 5 MΩ < 100 pF | >60dB at dc, 50 or 60Hz | - | |
| Volts DC | > 10 MΩ < 100 pF | >100dB at dc, 50 or 60Hz | > 60 dB at 50 or 60Hz | |
| Auto-V LoZ | ~3 kΩ < 500 pF | > 60dB at dc, 50 or 60Hz | - | |
| Ohms | Open circuit test voltage | Full scale voltage | Short circuit current | |
| To 6.0 MΩ | To 6.0 MΩ | |||
| < 2.7 V dc | < 0.7 V dc | < 0.9 V dc | < 350 µA | |
| Diode Test | < 2.7 V dc | 2.000 V dc | < 1.2 mA | |
| General specifications | ||||
| Function | Description | |||
| Maximum voltage between any terminal and earth ground | 600 V | |||
| Surge protection | 6 kV peak per IEC 61010-1 600V CAT III, Pollution Degree 2 | |||
| W Fuse for A input | 11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293) | |||
| Display | Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec | |||
| Temperature | Operating: -10°C to +50°C; Storage: -40°C to +60°C | |||
| Humidity |
0% to 90% to 35°C 75% to 40°C 45% to 50°C |
|||
| Temperature coefficient | 0.1 x (specified accuracy/°C) (< 18°C or > 28°C) | |||
| Operating altitude | 2,000 meters | |||
| Battery | 9 Volt Alkaline, NEDA 1604A/IEC 6LR61 | |||
| Battery life | Alkaline: 400 hours typical, without backlight | |||
| Safety compliances | ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1 | |||
| Certifications | UL, CSA, TUV, N10140 , VDE | |||
|
IP rating (dust & water protection) |
IP42 | |||
Warranty: 12 months
Manufacturer: Fluke - United States
SIÊU THỊ THIẾT BỊ ĐO QUANG MINH - CÔNG TY TNHH ĐẦU TƯ VÀ TT QUANG MINH
ĐT: 04.3873.0880 - Hotline: 090.400.3848 - Fax: 04.3873.0880
Email: kd@sieuthithietbido.com - Website: www.sieuthithietbido.com - www.sieuthithietbidienmay.net
By Siêu thị thiết bị đo Quang Minh

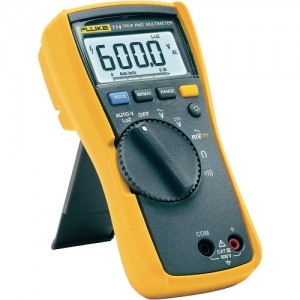

Siêu thị thiết bị đo Quang Minh: nhà cung cấp Đồng hồ vạn năng Fluke 114 Chính hãng Giá rẻ nhất - Gọi ngay 04.3873.0880 - 090.400.3848
