Kích thước thân máy: 18 x 11,5 x 3 cm

Màn hình hiển thị: 7,2 " (18 cm)

Độ phân dải màn hình: 960 x 234 pixels

Tín hiệu Video ra: FBAS signal (Chinch)

Trọng lượng: 400g

Đầu camera nhỏ: Color camera (PCE-V240)

Camera công nghệ: 1/3 " COLOR CMOS

Độ nhạy ánh sáng: 0,5 lux

Ống kính: f = 0,08" , F = 2,4

Góc nhìn hình ảnh camera: 120 °

Nguốn sáng camera: 12 LED's blancosa

Cấp bảo vệ đầu camera: IP 67 (water resistant) up to 3 bar

Kích thước camera: Ø 40 x 60 mm

Đặc tính khác: đường kính x chiều dài cáp camera Ø 6 mm x 20 m

Nguồn cung cấp : Acqui 2 x12 V / 1,2 Ah

Thời gian hoạt động : 1,5 ... 2 giờ

Hộp đựng: 510 x 430 x 180 mm

Tổng trọng lượng: 8 kg

Đo khoảng cách từ xa độ phân dải 0.04m

Hãng sản xuất: PCE – Anh

Bảo hành: 12 tháng

Borescope with colour camera powered by a 18 cm
accumulator with TFT and a 20 m cable

The PCE-V240 borescope / video borescope offers new perspectives for internal inspections of machines and installations as well as in ventilation ducts, holes, chimneys, pipes, ... The PCE-V240 borescope is the ideal tool for inspection and maintenance in the industrial sector or in workshops. Optical analysis with the PCE-V240 borescope has never been so easy. The PCE-V240 borescope offers the possibility of professional video inspection thanks to its rotating head. You can easily inspect machines, installation, pipes and other holes with a diameter from 40 to 300 mm without connecting it to the mains (up to 1,5 hours- 45 min. by means of a battery). Thanks to its flexible guide of only 40 mm of diameter and with a rotation of 360º and 180º rotation in vertical position. The PCE-V24O borescope has a system to indicate the distance covered and it is displayed in the TFT display. The TFT monitor of 18 cm and a format of 16:9 can be oriented to inspect difficult areas (with a 2m length cable) The PCE-V240 borescope has a video output in FBAS format to document the readings in a PC or in a video or DVD recorder.
The cable head has a color CCD sensor of 1,3” with a light sensitivity of 0.5 Lux providing a image clarity even in the darkest areas.

· Camera head of 40 mm of diameter and 60 mm
  length.

· Water resistant cable head

· Clear LED illumination

· Light sensitivity:
  PCE-V240 color: 0,5 lux

· 7,2 " (18 cm) TFT monitor

· 20 m length sliding cable

· Accumulator for 1,5 hours of operation

· Carrying case with two accumulators included

· Color display

· Angle of rotation of 180º

· Remote digital meter with a resolution of  0,04 m
  (only in the PCE-V240 model).



View / print user’s manual
of the PCE-V240 borescope

With the PCE-V240 borescope with monitor you will be able to track and inspect damages in ventilation ducts thanks to the sliding cable.
PCE-V240 borescope

With the PCE-V240 borescope with monitor you will be able to track and inspect damages in ventilation ducts thanks to the sliding cable.

Lighted camera head

Technical specifications

Dimensions of the case

18 x 11,5 x 3 cm

TFT display

7,2 " (18 cm)

Resolution of the monitor

960 x 234 pixels

Output / Video Out

FBAS signal (Chinch)

Weight

400g

Miniature camera head

Color camera
PCE-V240

Type

1/3 " COLOR CMOS

Light sensitivity

0,5 lux

Application

para usos estándar

Lens

f = 0,08" , F = 2,4

Angle of image sensing

120 °

Light source

12 LED's blancos

Protection

IP 67 (water resistant) up to 3 bar

Dimensions

Ø 40 x 60 mm

Other features

Dimensions of the sliding cable

Ø 6 mm x 20 m

Power

2 x12 V / 1,2 Ah accumulators

Operating time

1,5 ... 2 hours

Carrying case

510 x 430 x 180 mm

Total weight

8 kg

Remote distance meter PCE-V240

Electronic with a resolution of 0,04 metres

Applications

Here you can see the PCE-V240 borescope with monitor inspecting both water pipes and waste water within the industrial sector.
Here you can see the PCE-V240 borescope inspecting water pipes and waste water within the industrial sector.

With the PCE-V240 borescope with monitor you will be able to track and inspect damages in ventilation ducts thanks to the sliding cable.
With the PCE-V240 borescope you will be able to track and inspect damages in ventilation ducts thanks to the sliding cable.

The PCE-V240 borescope with monitor finds out damages easily, as for instance inside machines.
The PCE-V240 finds out damages easily, as for instance inside machines.

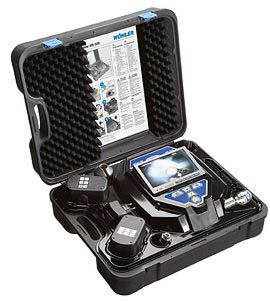

Delivery contents
Color camera for inspection with electronic meter count (displayed):
1 TFT color monitor
1  180 cm cable (for the monitor)
1 20 m sliding cable with a mark.
1 Miniature camera head (color)
1 charger
2 accumulators
User’s manual
Plastic carrying case

Options

- Sliding device to increase the curve and to          protect the camera head.

Endoscope PCE V240 V260. Component 1

- Sliding device to protect the camera lens. It        increases the curve and protects both the          camera head and the lens.

Endoscope PCE V240 V260. Component 2

- Weight management, ensures a better lowering   of camera head in vertical tubes
- Weight: 740 g
- Material: stainless steel

Endoscope PCE V240 V260. Component 3

Management system for PCE-V series,
  with six brushes for attachment to the flexible
  piece on the camera head, centered camera
  head e.g. in pipelines

- 200 mm Ø

Endoscope PCE V240/V260. Component 4

- Quick charger for external charge of                   interchangeable accumulators in 0.5 h

Endoscope PCE V240/V260. Component 5
