Khoảng đo nhiệt độ: -10 to 250°C
Sensor: uncooled focal plane array
Số điểm đo trên màn hình/ Độ phân dải hình ảnh của vùng đo trên màn hình: 160 x 120 pixels (19,200 points)
Cấp chính xác: ±2°C or ±2%
Độ phân dải màn hình: 192 x 192 pixels
Ống kính: (FOV) 20° x 15°
Focus: bằng tay
Khoảng cách đo: 30cm trở lên
Chức năng đo: 2 điểm di chuển khác nhau
Độ phân dải nhiệt độ: 0.15ºC
Tần số hình ảnh: 7.5 Hz
Dải phổ: 8 to 14µm
Mức phát xạ: 0.2 to 1.0 (có thể điều chỉnh)
Bộ nhớ: MMC hoặc thẻ SD
Cổng kết nối: USB kiều B
Màn hình hiển thị: 3.5" LCD, with back lighting and four adjustable colour palettes: rainbow, iron bow, hc rainbow and grey scale
Đơn vị nhiệt độ: ºC, ºF or K
Laser chỉ điểm: class II 1mW / 635nm
Nhiệt độ hoạt động: -15 to 45ºC
Nhiệt độ cất giữ: -20 to 70ºC
Độ ẩm không khí: 10 to 90% r.h. không đọng nước
Nguồn cung cấp: Pin sạc ion-litium
Thời gian hoạt động : 4-6h
Trọng lượng: 750gr
Kich thước: 230 x 120 x 110mm
Hãng sản xuất: PCE – ANH
Xuất xứ: UK

High resolution and comes with software

At the core of this thermal imaging camera is an uncooled focal plane array with a resolution of 160 x 120 pixels. The PCE-TC 3 thermal imaging camera is ergonomical and easy to use wth only one hand. Thanks to its light weight of only 750g, it's ideal for the analysis of machines and systems, for thermographics in construction and many other applications. The PCE-TC 3 thermal imaging camera offers a measurement accuracy of ±2ºC or ±2% within a temperature range of -10ºC to 250ºC, and wth a sensitivity of only 0.15ºC. Two moveable points can be manipulated in situ on the camera's colour display and show the corresponding temperature. This device also allows the user to automatically see the Hot-Spot and Cold Spot, and can measure the difference in temperature. With these top-of-the-range functions, irregularities can immediately be spotted and pertinant measures can be taken in situ. The integrated laser pointer allows for the device to be accurately aimed to ensure that the correct area is being measured.
Images that are saved to the camera's SD memory card can be transferred to a computer via the USB port or to take measurements while the camera is connected to a computer. Software comes included and it does more than just allow for analysis of thermal images, it permits the user to generate reports without extensive knowledge of or experience using the device.

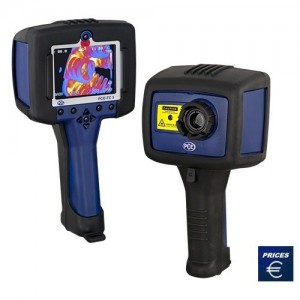

     front of the PCE-TC 3 Thermal Imaging Camera

back of the PCE-TC 3 Thermal Imaging Camera

  • Accurate measurement of temperature on the display

  • Two moveable measurement points

  • Automatically locates hot point, cold point and point of average value

  • Large 3.5" LCD with back lighting

  • High resolutio of 160 x 120 pixels

  • Temperature range: -10 to 250°C

  • Accuracy: maximum ±2°C or ±2%

  • Uncooled focal plane array for maintenance free work

  • Perfectly balanced, preventing wrist fatigue when used over extended periods.

  • Ergonomic: Use it with one hand

  • Light weight: 750g

  • Laser pointer: Can be aimed exactly at the area to be measured

  • Memory card for up to 1000 images

  • Long operating time of up to 6 hours

  • Data transfer of data: via the USB port to a computer

  • Software: to analyse data and easily generate detailed reports

  • Wide range of accessories

View or print the user's manual
the user's manual





PCE-TC 3 Thermal Imaging Camera: Example of a thermograph of a motor unit and transmission using the PCE-TC 3

Example of a thermograph of a motor unit and transmission using the PCE-TC 3



PCE-TC 3 Thermal Imaging Camera: The image shows a thermographic valuation in software on a computer

The image shows a thermographic valuation in software on a computer


Technical specifications
Temperature range -10 to 250°C
Sensor: uncooled focal plane array
Measurement points / Resolution 160 x 120 pixels (19,200 points)
Accuracy ±2°C or ±2%
Display resolution 192 x 192 pixels
Lens (FOV) 20° x 15°
Focus manual
Measurement distance

30cm to infinity

Measurement functions two moveable points, measures difference
Temperature resolution 0.15ºC
Image frequency 7.5 Hz
Spectral range 8 to 14µm
Emissivity 0.2 to 1.0 (adjustable in steps of 0.01)
Memory MMC or SD memory card
Port USB type B
Display 3.5" LCD, with back lighting and four adjustable colour palettes: rainbow, iron bow, hc rainbow and grey scale
Temperature units ºC, ºF or K
Laser pointer class II 1mW / 635nm
Operating temperature -15 to 45ºC
Storage temperature -20 to 70ºC
Air humidity 10 to 90% r.h. without condensation
Power ion-litium rechargeable
Operating time 4 to 6 hours
Enclosure plastic
Tripod screw 1/4"
Weight 750gr
Dimensions 230 x 120 x 110mm

The PCE-TC 3 thermal imaging camera in use

PCE-TC 3 Thermal Imaging Camera: thermal tracks on pavement
Thermal tracks on pavement

PCE-TC 3 Thermal Imaging Camera: thermal tracks in grey scale
The same image in grey scale

PCE-TC 3 Thermal Imaging Camera: thermal load on a wheel
Thermal charge of a wheel

PCE-TC 3 Thermal Imaging Camera: same image in grey scale
The same image in grey scale

PCE-TC 3 Thermal Imaging Camera: thermal image of building
Thermal image of a building front

PCE-TC 3 Thermal Imaging Camera: valoration using software
Valuation of an image using software

PCE-TC 3 Thermal Imaging Camera: another image of a building front
Another presentation of colour
of a building facade

PCE-TC 3 Thermal Imaging Camera: thermal radiation at a window
high thermal radiation from a window

PCE-TC 3 Thermal Imaging Camera: thermal radiation of a building
Thermal radiation from a building

PCE-TC 3 Thermal Imaging Camera: thermal leaks from a building
Thermal leaks from a window


Software

The images captured are sent from the SD memory card to a computer. Software allows access to all the pixels in the image and the opportunity to adjust the parameters such as emission value, temperature, humidity and distance.



PCE-TC 3 Thermal Imaging Camera: software


Features
 • Determines temperature at all points
 • Determines minimum, maximum and average temperature
 • Selection of colours available
 • Possibility to change Level and Span
 • Automatically compiles models and reports
 • Results table with automatic indication of date, time, user and event



Contents
PCE-TC 3 thermal imaging camera , rechargeable battery, charger, hand strap, software, USB cable, SD memory card, carrying case and user's manual
