Đồng hồ đo độ cứng cao su PCE-A Shore A 12.5 N

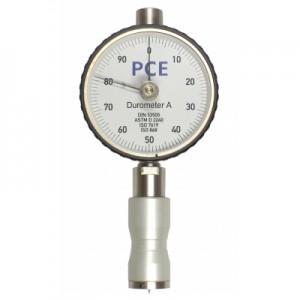

Hardness Tester PCE-A Shore A
Mechanical hardness tester for measuring the hardness of soft rubber and plastic

The PCE-A Hardness Tester is a standard model for measuring the hardness of rubber (Shore A). The Hardness Tester is composed of a device with a pressure pin and a 360° anti-glare dial with an accuracy to within 0.5 hardness units. Meets standards DIN 53505, ISO 868, ISO 7619 and ASTM D 2240. The Hardness Tester comes calibrated and ISO certified. The device can be recalibrated at any time with an ISO calibration certificate included (at additional cost).
Optional accessories offered for the PCE-A are a test position and a test control device to test the accuracy of the device on the job. You will always obtain the best results when measuring the hardness of rubber both in accuracy and repeatability especially when doing random testing for product control when combined with the test position.

  - Models with or without pulling needle
  - Large dial
  - Read in hardness units
  - 360° dial
  - Highly accurate
  - Ergonomic design
  - Meets all standards
  - Used for isolated measurements or in series
    (for series measurements the optional test
     position is required)
  - Comes calibrated and ISO certified
  - Includes a protective cover

PCE-A Hardness Tester
View or print the user's manual

Technical Specifications

Force

12.5 N

Penetrating body

35°

Standard

DIN 53505

Diameter of dial

57mm

Total length

123mm

Indication range

0 to 100

Measurement range

10 to 90

Margin of error

±0.5

Division of scale

1

Pulling needle

No

Weight

158g

Delivery contents
Shore A Hardness Tester PCE-A, case, calibration certificate and user's manual.
