Thiết bị đo độ cứng cao su và vật liệu đàn hồi PCE-DX-A 12.5 N

  Mechanical Hardness Tester for testing the hardness of soft rubber and elastic

The PCE-DX-A Hardness Tester is a standard device for measuring the hardness of soft materials in shore A. This Hardness Tester comes with a measurement device and a sensor head with a scale divided into hardness units of 0.5. You can order an optional ISO calibration certificate for the PCE-DX-A Hardness Tester. To have this done, we will send the tester to an independent laboratory which will delay your order for up to 5 days.  Here you will find an explanation of the hardness measurement process.

 - Stainless steel enclosure
 - Large, easy to read display
 - Displays units of hardness
 - 360° dial
 - High accuracy and repeatability
 - Ergonomic design
 - Optional calibration certificate
 - Comes with a storage case

View or print the user's manual

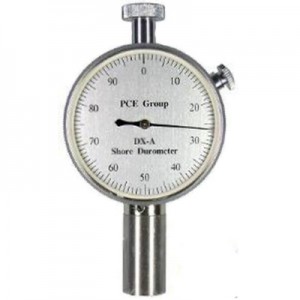

PCE-DX-A shore A Hardness Tester

Technical Specifications

Force of pressure

12.5 N

Penetrating body

35°

Dial radius

57mm

Total length

107mm

Display range

0 to 100

Measurement range

10 to 90

Margin of error

±1

Scale divisions

1

Weight

240g

Delivery contents
PCE-DX-A shore A Hardness Tester, case and user's manual
