Range of measurement:

vibration velocity
vibration acceleration
vibration amplitude



0,01 to 199,9 mm/s
0,01 to 199,9 m/s²
0,001 to 1,999 mm

Resolution 0,01 mm/s; 0,01 m/s²; 1 µm
Precision ±5 %
Range of frequencies:

vibration velocity
vibration acceleration
vibration amplitude



10 Hz to 1 kHz
10 Hz to 1 kHz
10 Hz to 500 Hz

Display 4 digit LCD display that shows the last measured value
Power 2 watch batteries 1,5 V
with 5 hours of continuous use
Automatic disconnect automatically disconnects after 2 minutes without activity to protect battery life
Operating conditions 0 to 40 °C, < 85 % H.r.
Dimensions 150 x 22 x 15 mm
Weight 55  g

Hãng sản xuất: PCE - Anh

Bảo hành: 12 tháng

Classification of results (ISO 2372)

(RMS) class I II III IV
mm/s
0,28 very good very good very good very good
0,45
0,71
1,12 good
1,8 good
2,8 bad good
4,5 bad good
7,1 prohibited bad
11,2 prohibited bad
18 prohibited
28 > prohibited

Attention (the classes refer to):
class I (small motors up to 15 kW),
class II (medium electronic motors up to 75 kW),
class III (large electronic motors con stator stable) y
class IV (large motors with bearing / stator oscillating).
These results are taken from at least 3 measurements on 3 axis.

Technical specifications

Range of measurement:

vibration velocity
vibration acceleration
vibration amplitude



0,01 to 199,9 mm/s
0,01 to 199,9 m/s²
0,001 to 1,999 mm

Resolution 0,01 mm/s; 0,01 m/s²; 1 µm
Precision ±5 %
Range of frequencies:

vibration velocity
vibration acceleration
vibration amplitude



10 Hz to 1 kHz
10 Hz to 1 kHz
10 Hz to 500 Hz

Display 4 digit LCD display that shows the last measured value
Power 2 watch batteries 1,5 V
with 5 hours of continuous use
Automatic disconnect automatically disconnects after 2 minutes without activity to protect battery life
Operating conditions 0 to 40 °C, < 85 % H.r.
Dimensions 150 x 22 x 15 mm
Weight 55  g

Use of the vibration meter

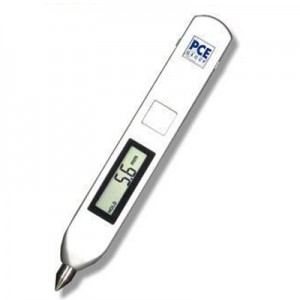

The vibration meter PCE-VT 2600 is very easy to use

using the vibration meter PCE-VT 2600.

Content
PCE-VT 2600 vibration meter, protective cover, case, 2 batteries and user's manual
