Variation 0.005 to 1.999mm
Độ phân giải
Acceleration 0.1m/s²
Velocity 0.1mm/s
Variation 0.001mm
Độ chính xác
Acceleration ±5%  ±2 digits
Velocity ±5%  ±2 digits
Variation ±5%  ±2 digits
Dải tần 10 Hz to 1 kHz
Đo tốc độ vòng quay (RPM) – (vòng/phút)
Khoảng đo
Revolutions (optical)
10 to 99999 r.p.m.
Revolutions (byr contact) 0.5 to 19999 r.p.m.
Velocity 0.05 to 1999 m/min
Độ phân giải
0.1 r.p.m. (<1000 r.p.m.);
1 r.p.m. (>1000 r.p.m.);
0.01 m/min (<100 m/min)
0,1 m/min (>100 r.p.m.)
Độ chính xác
±0.05% of reading; ±1 digit
Khoảng cách đo
Từ 50 đến 1500mm (phụ thuộc vào bề mặt)
General properties
Bộ nhớ trong 1000 kết quả
Cổng giao tiếp RS-232
Hiển thị Màn hình LCD
Nguồn 4 AA batteries
Kích thước 188 x 76 x 47mm
Điều kiện hoạt động 0 to 50ºC / <80% r.h.
Khối lượng 400g
Hãng sản xuất: PCE - Anh

Bảo hành: 12 tháng

Tachometer PCE-VT 204

detects speed of vibration, displacement and acceleration, measures revolutions (by contact or optically), internal memory, RS-232 interface

The PCE-VT 204 Tachometer stands out due to its multi-functionality. The Tachometer is capable of accurately measuring three parameters of vibration ad can also be used as a tachometer. The device, as well as testing for vibration in motors, transmission, gears, wheels and gear boxes, it can also measure rotation of machine parts and rotating components. The attached acceleration sensor can be set flat, equipped with a magnet or combine the sensor with a fastening screw which comes included in the shipment. If you desire to transfer the readings form the tachometer to a computer, order the optional software package. The internal frequency filters eliminate the effects of background noise allowing the device to detect specific vibrations.

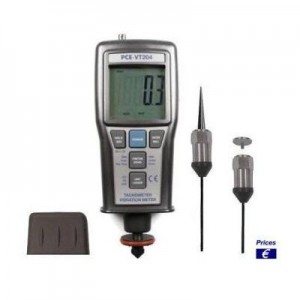

PCE-VT 204 tachometer with sensors and adaptors

The image above shows the PCE-VT 204 Tachometer and all its different sensors, adaptors, wheels and cones for it to be used as a tachometer, magnet and fastening screw. It is indispensable for technical service departments.

Detects:
    - displacement, velocity, vibration
      acceleration and revolutions
      (by contact or optically)

Includes:
    - Memory for 1000 readings
    - 15mm LCD
    - low battery indicator
    - RS-232 interface
    - Min / Max and Data hold functions
    - Needle sensor, flat sensor, adjustable
      magnetic base, wheel and optical
      sensor for measuring rotation

View or print the user's manual
PCE-VT 204 Handtachometer
user's manual: PCE-VT 204 tachometer.

optional software pack for the PCE-VT 204 tachometer
PCE-VT 204 Tachometer
and optional software pack

Technical Specifications

Vibration


Range Acceleration 0.5 to 199.9m/s²
Velocity 0.5 to 199.9mms-1
Variation 0.005 to 1.999mm
Resolution Acceleration 0.1m/s²
Velocity 0.1mm/s
Variation 0.001mm
Accuracy Acceleration ±5%  ±2 digits
Velocity ±5%  ±2 digits
Variation ±5%  ±2 digits
Range of frequency 10 Hz to 1 kHz

Revolution per minute (RPM)

Measurement range Revolutions (optical) 10 to 99999 r.p.m.
  Revolutions (byr contact) 0.5 to 19999 r.p.m.
  Velocity 0.05 to 1999 m/min
Resolution 0.1 r.p.m. (<1000 r.p.m.);
1 r.p.m. (>1000 r.p.m.);
0.01 m/min (<100 m/min)
0,1 m/min (>100 r.p.m.)
Accuracy ±0.05% of reading; ±1 digit
Measurement distance 50 to 1500mm (depending on surface)

General properties

Internal memory 1000 readings
RS-232 port yes
Display LCD with graphic bars
Power 4 AA batteries
Dimensions 188 x 76 x 47mm
Operating conditions 0 to 50ºC / <80% r.h.
Weight 400g
Eclosure plastic

Delivery contents

PCE-VT 204 Tachometer, support sensor with 1.5m cable, 50mm needle sensor, magnetic base, measuring cone, 600mm of reflective tape, carrying case, 4 batteries and user's manual.
