Dải đo 0,1 ... 199,9 mm/s
Độ phân dải 0,1 mm/s
Cấp chính xác ± 5 %
Dải tần 10 Hz ... 1 kHz
Màn hình hiển thị LCD hiển thị giá trị cuối cùng của phép đo
pin 2 pin 1.5V, 5h sử dụng liênt cụ
Tự động tắt nguồn tự động tắt sau 2 phút không sử dụng
Điều kiện hoạt động 0 ... 40 °C, < 85 % H. r.
Kích thước 150 x 22 x 15 mm
Trọng lượng 55 g

Hãng sản xuất: PCE - Anh

Bảo hành: 12 tháng

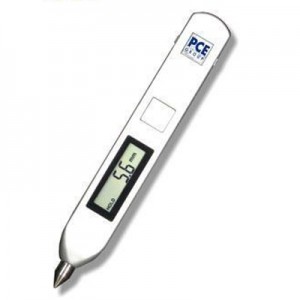

Pocket Vibration Meter to measure vibration velocity in machines and installations

The PCE-VT 1000 Vibration Meter has been created for the preventative maintenance of production machinery. The PCE-VT 1000 Vibration Meter can take quick measurements of an imbalance and test the state of bearings and gears. It also frequently used to evaluate the state of small electronic motors. In the following section, you will find classifications of the values obtained with the PCE-VT 1000 Vibration Meter.

- measure vibration velocity
- keep the value after every measurement.
- hand-held analyzer, powered by batteries.
- wide frequency range
- automatic disconnect after 2 minutes of
  inactivity to protect battery life.
- Low battery indicator

PCE-VT 1000 vibration meter to measure vibration velocity in machines and installations.

 View or print the user's manual for the
Vibration Meter PCE-VT 1000
PCE-VT 1000 vibration meter user's manual

Classification of results (ISO 2372)

(RMS) class I II III IV
mm/s
0,28 very good very good very good very good
0,45
0,71
1,12 good
1,8 good
2,8 bad good
4,5 bad good
7,1 prohibited bad
11,2 prohibited bad
18 prohibited
28 > prohibited

Attention (the classes refer to):
class I (small motors up to 15 kW),
class II (medium electronic motors up to 75 kW),
class III (large electronic motors con stator stable) y
class IV (large motors with bearing / stator oscillating).
These results are taken from at least 3 measurements on 3 axis.

Technical Specifications

Range of measurement
(vibration velocity)
0,1 ... 199,9 mm/s
Resolution 0,1 mm/s
Accuracy ± 5 %
Frequency range 10 Hz ... 1 kHz
Display 3,5 positions LCD display that shows the last measurement value.
Battery 2 watch batteries 1,5 V
with 5 hours of continuous use
Auto shut-off automatically disconnects after 2 minutes without activity to protect battery life
Operating temperature range 0 ... 40 °C, < 85 % H. r.
Dimensions 150 x 22 x 15 mm
Weight 55 g

Delivery contents
1 PCE-VT 1000 Vibration Meter, carrying case, 2 batteries, factory certificate, user’s manual.
